Products Description

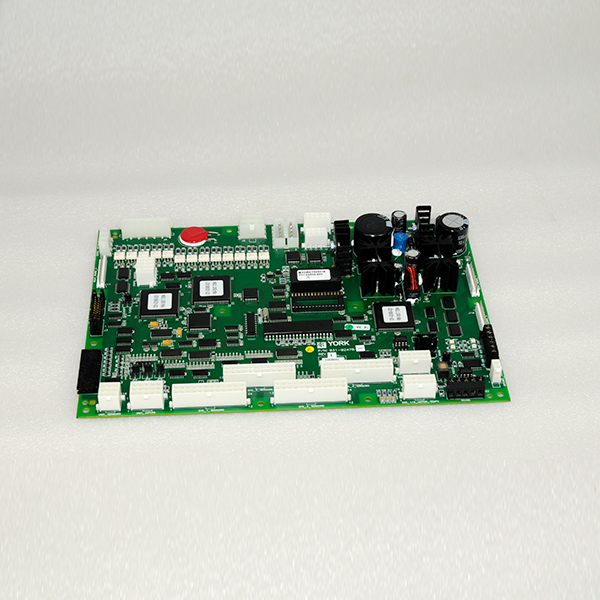

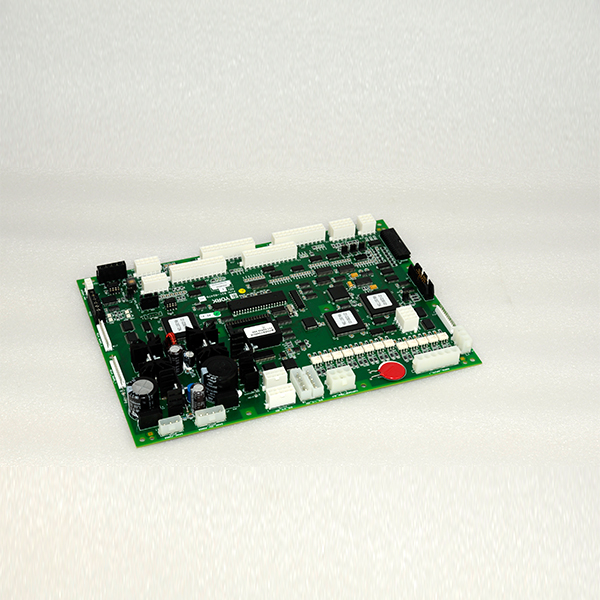

| Product Name | York 031-02478-001 IGBT Driver Board |
| Model | 031-02478-001 |
| Applicable Industries | Construction and Commercial |
| Application | Refrigeration compressor |
| Packaging | Cardboard Box |
| MOQ | 1 Piece |
Product fault symptoms:
Upon power-up, the VSD fails its self-test; the control panel continuously reports inverter faults and IGBT driver faults;
The compressor fails to start; only the oil pump and VSD cooling water pump operate; DC bus voltage is normal, but there is no three-phase output;
Random tripping occurs during operation, indicating a power module short circuit; the IGBT blows again after the fuse is replaced;
Severe three-phase output current imbalance; the input circuit breaker trips frequently;
No drive waveform for a specific IGBT channel; insufficient compressor output and severe vibration;
Fault LED on the board remains constantly lit; no gate output from the drive channel;
Capacitors on the board are bulging and terminals are overheating; the VSD power circuit fuse blows immediately upon power-up.
Tags: 031-02478-001 central chiller maintenance spare part chiller main control panel commercial air conditioning replacement board compressor operation control accessory cooling system electronic component HVAC circuit control board HVAC system control fitting industrial refrigeration control module refrigeration unit motherboard York chiller spare parts York control board
Technical parameter
Company Profile
Factory Profile
| Q1:For refrigeration industry, which brands are your products covering? | A1:We produce filter element replacements for brands like,Bitzer, Carrier, York, McQuay, Trane, etc… |
| Q2:Does the price include freight? | A2:The quotation is usually the factory price. We can recommend the most economical logistics plan and calculate the freight according to your destination and quantity. |
| Q3:How to ensure product quality? | A3:We have a strict quality control process, and we will carry out multiple inspections before the products leave the factory to ensure that they meet the standards. |
| Q4:Why choose us? | A4:Product reliability: We are a professional manufacturer . can offer high-quality products at the most competitive prices. Technical support: We provide technical assistance. Industry experience: We have over 10 years of experience in the refrigeration equipment service field. After-sales service: We offer professional after-sales service. Team collaboration: We have a professional team that can provide you with prompt services and delivery schedules. |
Core Product Advantages:
Six-channel independent isolated drive with Miller clamping effectively eliminates the risks of spurious IGBT turn-on and bridge-arm shoot-through short circuits;
Ultra-fast 3μs short-circuit protection significantly reduces the risk of collateral damage—such as the burnout of IGBTs and DC-link capacitors;
Standard 4-hole mounting interface allows for direct drop-in replacement of OEM parts, requiring no modifications to the VFD cabinet’s sheet metal or busbars;
Hardware pins are fully interchangeable across the 001, 002, and 003 models, allowing a single spare part to cover the entire range of 19XRV water-cooled VFD chillers;
Industrial-grade “3-proof” (conformal coated) PCB withstands the high-temperature, sealed environment and refrigerant oil mist inside the VFD cabinet, ensuring a long service life.
