Products Description
| Product Name | Yk 331-02430-601 Main Board |
| Model | 331-02430-601 |
| Applicable Industries | Construction and Commercial |
| Application | Refrigeration compressor |
| Packaging | Cardboard Box |
| MOQ | 1 Piece |

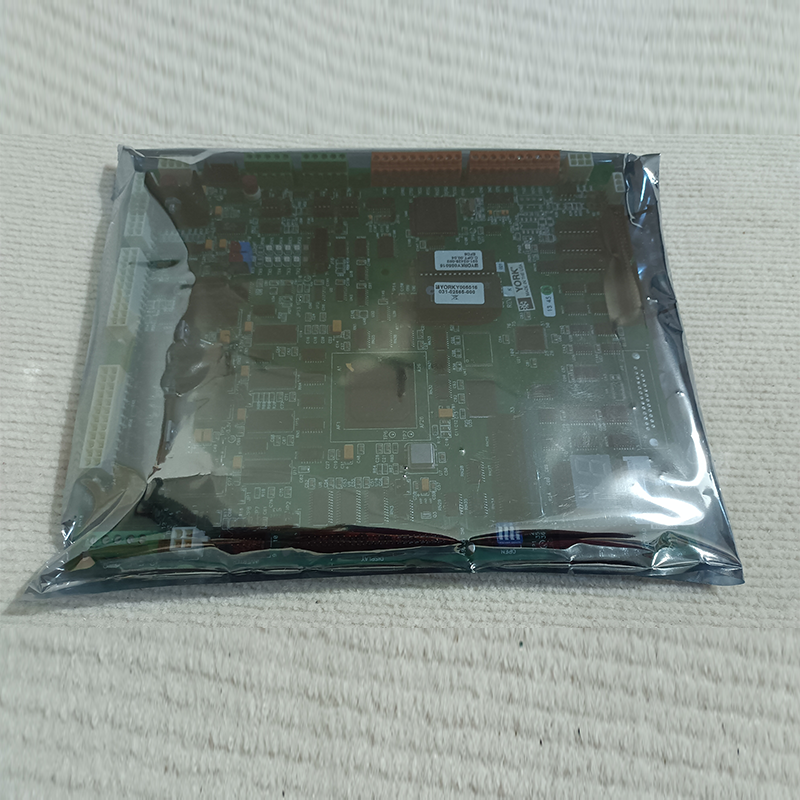

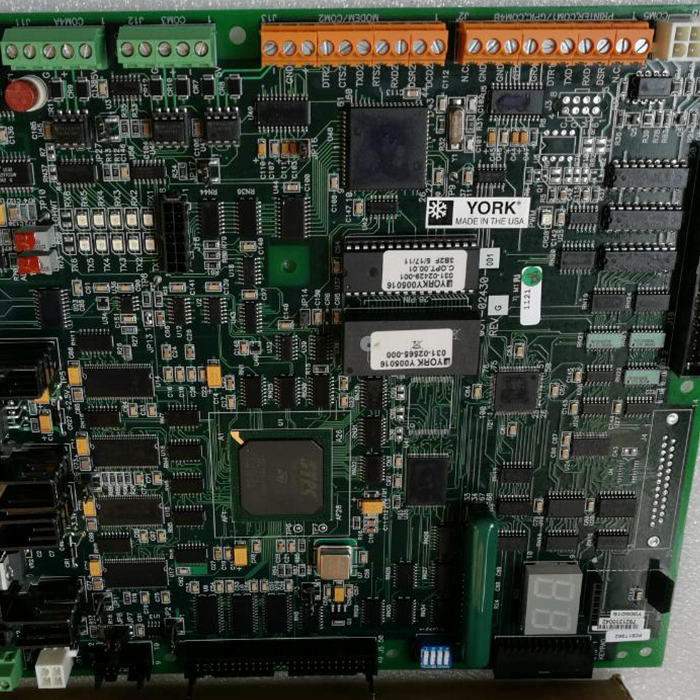

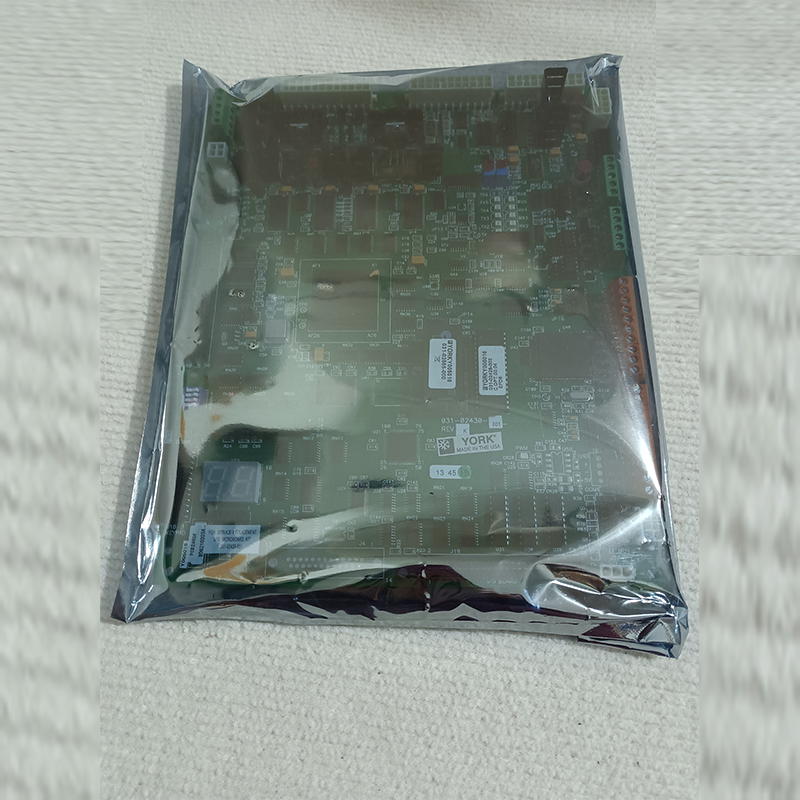

Yk 331-02430-601 Main Control Board: Core Functions
1. System Master Control (Core Unit)
Acquires key parameters such as evaporation/condensation pressure, chilled/cooling water temperature, oil temperature, oil pressure, vibration levels, and liquid levels;
Executes closed-loop control for compressor speed, inlet guide vane (IGV) opening, capacity modulation, and start/stop logic;
Implements safety interlocks including anti-surge protection, oil pressure protection, high-temperature protection, vibration protection, and water flow protection.
2. OptiView System Communication and Display
Communicates in real-time with the York OptiView operator panel to display operating parameters, fault codes, historical records, and trend curves;
Supports remote monitoring, parameter configuration, software updates, and fault diagnostics.
3. Precision Compressor Control
Start-up Control: Soft start, Star-Delta switching, pre-opening of guide vanes, and oil pressure establishment;
Operational Modulation: Infinitely adjusts guide vane opening based on cooling demand to ensure efficient and stable operation;
Shutdown Protection: Normal shutdown, emergency shutdown, anti-reverse rotation protection, oil recovery, and refrigerant equalization.
4. Fault Diagnostics and Protection
Monitors over 200 operating parameters in real-time to accurately identify faults and store historical records;
Protective Actions: Immediate shutdown, alarm output, fault lockout, and prevention of secondary damage.
Tags: air conditioning control board chiller electrical board chiller main board chiller maintenance parts Chiller Spare Parts commercial refrigeration component cooling system control board electronic motherboard HVAC Control Board hvac replacement board industrial chiller control board industrial HVAC control module main control board refrigeration circuit board refrigeration control board refrigeration equipment board York 331-02430-601 York chiller parts York circuit board York HVAC spare parts
Technical parameter
Company Profile
Other Product Images
| Q1:For refrigeration industry, which brands are your products covering? | A1:We produce filter element replacements for brands like,Bitzer, Carrier, York, McQuay, Trane, etc… |
| Q2:Does the price include freight? | A2:The quotation is usually the factory price. We can recommend the most economical logistics plan and calculate the freight according to your destination and quantity. |
| Q3:How to ensure product quality? | A3:We have a strict quality control process, and we will carry out multiple inspections before the products leave the factory to ensure that they meet the standards. |
| Q4:Why choose us? | A4:Product reliability: We are a professional manufacturer . can offer high-quality products at the most competitive prices. Technical support: We provide technical assistance. Industry experience: We have over 10 years of experience in the refrigeration equipment service field. After-sales service: We offer professional after-sales service. Team collaboration: We have a professional team that can provide you with prompt services and delivery schedules. |
Key Points for Product Installation and Replacement
1. Power Disconnection and Discharge: Before replacement, cut off the unit’s main power supply and control power supply, and allow for a discharge period of at least 10 minutes to prevent high-voltage electric shock and electrostatic damage to the mainboard.
2. Wiring Standards:
Record the numbers and sequence of all wiring terminals, and take photographs for reference;
Apply even force when inserting or removing connectors to avoid bending or breaking the pins;
Strictly distinguish between power cables and communication cables, and ensure the shielding layers are reliably grounded.
3. Software and Compatibility:
The new mainboard comes pre-loaded with the specific software program corresponding to the unit model; it will automatically detect and identify the unit’s configuration after installation;
For certain models, it is necessary to verify the mainboard model, serial number, and software version via the OptiView control panel.
4. Grounding and Interference Suppression:
Ensure the mainboard is reliably grounded to prevent electromagnetic interference;
Keep the mainboard away from variable frequency drives (VFDs), contactors, and high-power equipment, and maintain adequate clearance for heat dissipation.
5. Commissioning and Verification:
After powering on the unit, check the status of all indicator lights, verify communication connections, and confirm parameter displays;
Perform test runs under both no-load and full-load conditions to verify the proper operation of compressor start/stop cycles, inlet guide vane control, safety protection functions, and communication links.
