Products Description

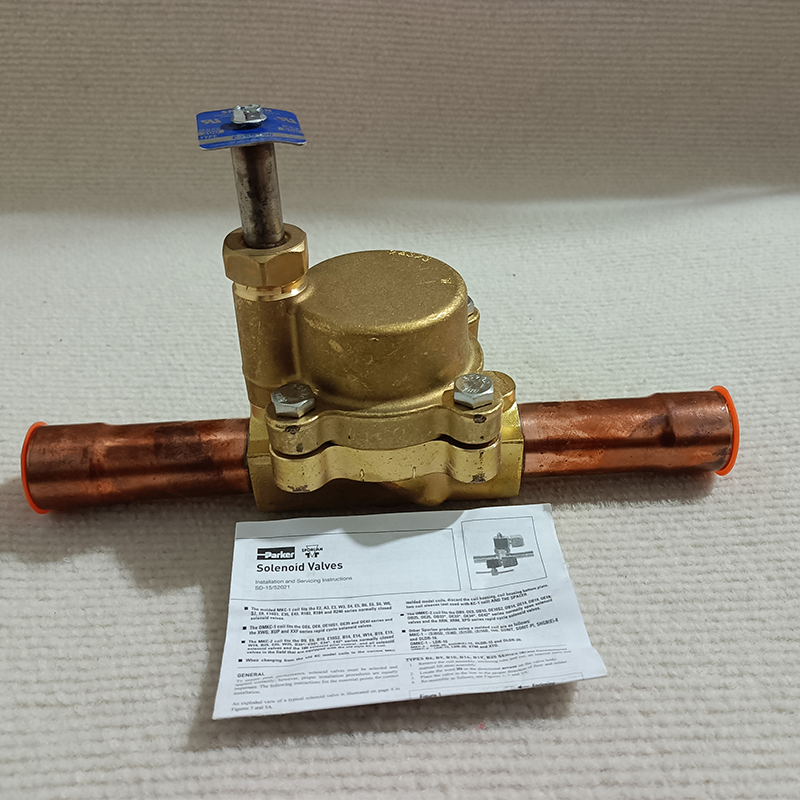

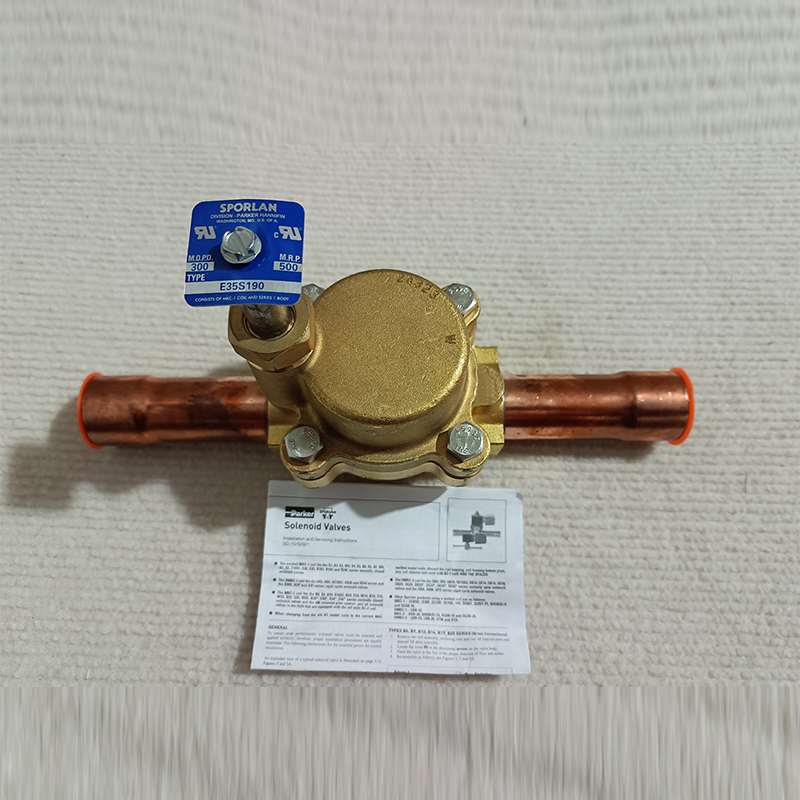

| Product Name | Trane VAL08781 Main Oil Circuit Solenoid Valve |
| Model | VAL08781 |
| Applicable Industries | Construction and Commercial |
| Application | Refrigeration compressor |

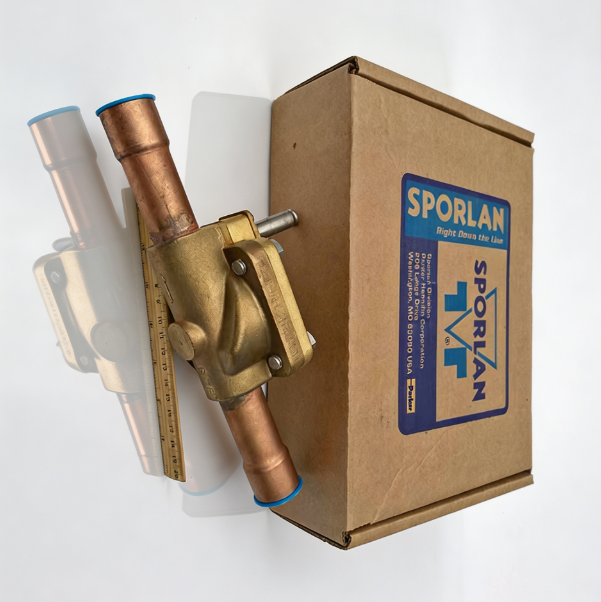

| Packaging | Cardboard Box |
| MOQ | 1 Piece |
Trane VAL08781 Solenoid Valve: Core Functions
1. Control of Main Oil Circuit Flow (Primary Function)
Upon Unit Start-up: Coil energizes → Valve spool lifts → Valve opens → Lubricant pump supplies oil to the compressor bearings and rotors, establishing lubrication and hydraulic balance to ensure wear-free, high-speed operation of the screw compressor.
Upon Unit Shut-down: Coil de-energizes → Spring returns spool to original position → Valve closes → Main oil circuit is cut off, preventing oil backflow from the compressor into the oil reservoir or refrigerant system, thereby avoiding oil starvation (dry running) during subsequent start-ups and preventing refrigerant dilution of the lubricant.
2. Prevention of Oil Migration and Refrigerant Dilution
During shut-down, the oil circuit is strictly sealed off to prevent liquid refrigerant from dissolving into the compressor oil; this averts issues such as oil foaming, lubrication failure, and bearing burnout during the next start-up cycle.
3. Safety Interlock Protection
Interlocked with the unit’s oil differential pressure switch and oil pump operation signal: If the solenoid valve fails to open, the unit is inhibited from starting; in the event of an unexpected power failure during operation, the oil supply is immediately cut off and the unit shuts down to protect the compressor.
Tags: central cooling valve chiller maintenance parts chiller replacement parts chiller solenoid valve commercial hvac valve cooling system valve electromagnetic valve HVAC mechanical component hvac solenoid valve HVAC Spare Parts industrial chiller valve industrial refrigeration valve refrigerant control valve refrigeration equipment valve refrigeration solenoid valve refrigeration system accessory solenoid valve Trane chiller parts Trane hvac accessories Trane VAL08781
Technical parameter
Company Profile
Technical parameter
| Q1:For refrigeration industry, which brands are your products covering? | A1:We produce filter element replacements for brands like,Bitzer, Carrier, York, McQuay, Trane, etc… |
| Q2:Does the price include freight? | A2:The quotation is usually the factory price. We can recommend the most economical logistics plan and calculate the freight according to your destination and quantity. |
| Q3:How to ensure product quality? | A3:We have a strict quality control process, and we will carry out multiple inspections before the products leave the factory to ensure that they meet the standards. |
| Q4:Why choose us? | A4:Product reliability: We are a professional manufacturer . can offer high-quality products at the most competitive prices. Technical support: We provide technical assistance. Industry experience: We have over 10 years of experience in the refrigeration equipment service field. After-sales service: We offer professional after-sales service. Team collaboration: We have a professional team that can provide you with prompt services and delivery schedules. |
Common Product Fault Symptoms
1. Coil Burnout (Failure to Actuate): The unit reports a “Low Oil Pressure Differential” alarm, and the compressor receives no oil supply; this is typically caused by coil overvoltage/aging, moisture-induced short circuits, or control circuit malfunctions.
2. Spool Seizing (Stuck Open / Stuck Closed):
Stuck Open: Oil continues to flow after the unit shuts down, leading to refrigerant dilution of the oil and an oil shortage upon startup.
Stuck Closed: No oil supply is delivered after startup, triggering an oil pressure differential alarm and causing the unit to shut down.
3. Causes: Primarily attributed to impurities in the oil clogging the spool, spring fatigue, or internal wear within the valve body.
Valve Body Leakage: Oil leaks at connections, a drop in oil level, or insufficient pressure; typically caused by cracks in weld joints, aging seals, or casting defects (pinholes) in the valve body.
4. Noise / Vibration: A buzzing or abnormal noise occurs when energized, accompanied by vibration of the valve body; this is typically caused by a loose coil, corrosion of the iron core, or insecure mounting/fastening.
