Products Description

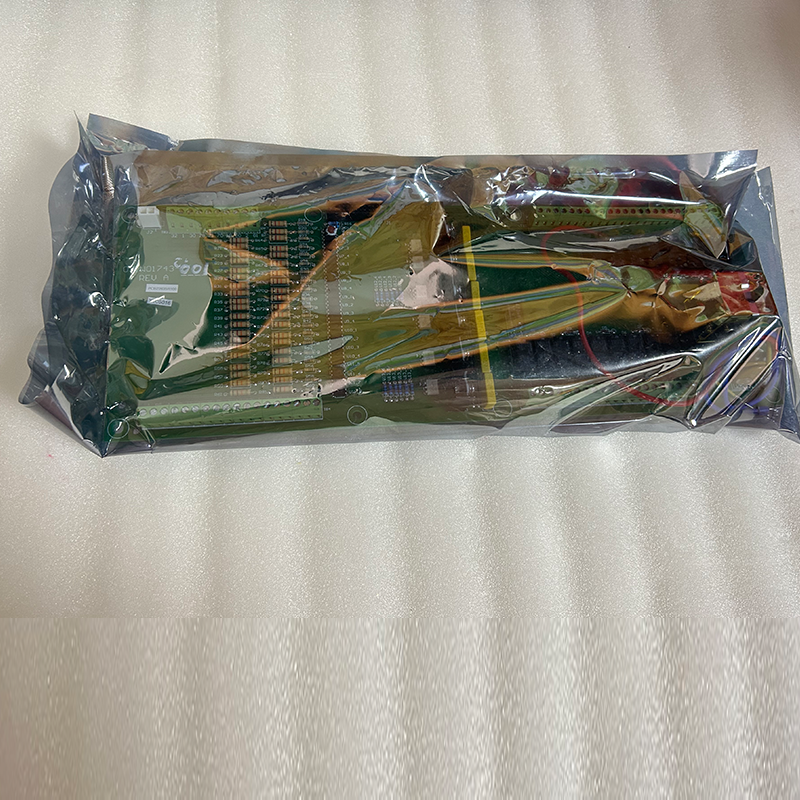

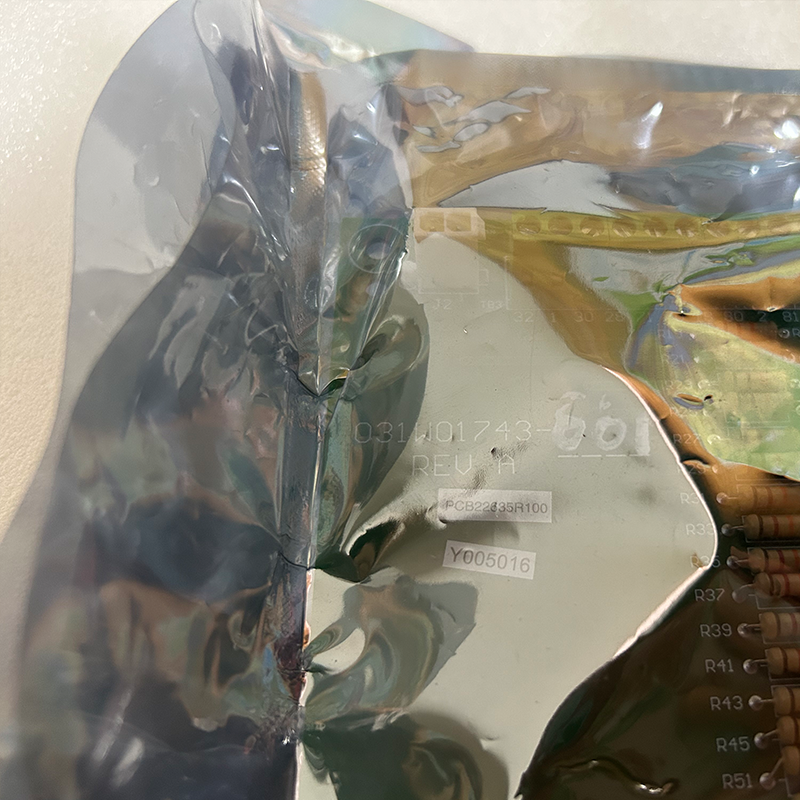

| Product Name | Yk 031-01743-001 Control Board |
| Model | 031-01743-001 |
| Applicable Industries | Construction and Commercial |
| Application | Refrigeration compressor |
| Packaging | Cardboard Box |
| MOQ | 1 Piece |
Yk 031-01743-001 Control Board: Core Functions
1. Comprehensive System Signal Acquisition (Core of the Sensing Layer)
Pressure Signals: High/low pressure and oil pressure sensors (e.g., 025-41756-002) → Real-time monitoring of pressure ratios, pressure differentials, and anti-surge conditions;
Temperature Signals: Water, refrigerant, and discharge temperature sensors (e.g., 025-29964-001) → Calculation of superheat and subcooling values, and anti-freeze protection;
Switch Signals: Water flow switches, high/low pressure switches, safety valves, and emergency stop buttons → Safety interlocks and immediate shutdown upon detecting anomalies.
2. Data Processing and Computation (Core of the Control Layer)
Signal Conversion: Analog-to-digital signal conversion to provide data for the main control CPU;
Logic Control: Control of inlet guide vane opening, compressor loading/unloading, expansion valve opening (e.g., 025-32905-000), and fan speed modulation;
Safety Protection: Low-pressure anti-freeze protection, high-pressure overload protection, high-temperature protection, low oil level detection, and anti-surge control; real-time fault alarming and code logging.
3. Actuator Driving (Core of the Actuation Layer)
Drives the compressor inlet guide vane motor, expansion valve stepper motor, cooling fans, oil pump, and solenoid valves;
Outputs relay signals to control contactors, alarm lights, and remote monitoring interfaces.
4. Communication and Fault Diagnosis
Communicates with the main control board (Micro Board), operator panel, and remote monitoring systems;
Built-in Fault Self-Diagnosis: Detects power anomalies, signal loss, short circuits, and component failures → Precisely locates faults to facilitate maintenance and servicing.
Tags: air conditioning circuit board chiller control board chiller electrical board chiller maintenance parts chiller replacement board circuit board commercial HVAC parts control board cooling system control board electronic control board HVAC Control Board HVAC Spare Parts industrial HVAC control module main controller board refrigeration control board refrigeration equipment board York 031-01743-001 York chiller parts York control board York HVAC accessories
Technical parameter
Company Profile
Factory Profile
| Q1:For refrigeration industry, which brands are your products covering? | A1:We produce filter element replacements for brands like,Bitzer, Carrier, York, McQuay, Trane, etc… |
| Q2:Does the price include freight? | A2:The quotation is usually the factory price. We can recommend the most economical logistics plan and calculate the freight according to your destination and quantity. |
| Q3:How to ensure product quality? | A3:We have a strict quality control process, and we will carry out multiple inspections before the products leave the factory to ensure that they meet the standards. |
| Q4:Why choose us? | A4:Product reliability: We are a professional manufacturer . can offer high-quality products at the most competitive prices. Technical support: We provide technical assistance. Industry experience: We have over 10 years of experience in the refrigeration equipment service field. After-sales service: We offer professional after-sales service. Team collaboration: We have a professional team that can provide you with prompt services and delivery schedules. |
Common Product Faults and Replacement Criteria
1. Unit fails to start: No 24V power supply, abnormal DI signal, or short circuit on the circuit board;
2. Sensor reading drift / No display: Damaged AI channel, loose signal terminal, or aging circuit board;
3. Guide vanes / Expansion valve fail to actuate: AO channel fault, damaged drive relay, or abnormal circuit board output;
4. Frequent alarms (High/Low Pressure / Temperature): Faulty signal processing circuit, or moisture/corrosion damage to the circuit board;
5. Scorched circuit board / Blackened components: Power surge, short circuit, water ingress, or aging (Immediate replacement required).
