Products Description
Product Core Functions and Operating Principles
1. Core Functions
Precise Flow Regulation: Driven by signal commands from the Trane unit controller, a stepper motor drives the valve spool to move linearly, achieving stepless, precise control of refrigerant flow. This replaces traditional thermal expansion valves, offering faster response speeds and higher control accuracy.
Stable Superheat Control: Based on temperature and pressure signals at the evaporator outlet, the valve opening is dynamically adjusted to maintain stable superheat. This prevents evaporator frosting or liquid carryover, thereby enhancing the unit’s operational efficiency and reliability.
Wide Operating Condition Adaptability: Supports efficient unit operation under partial load and variable operating conditions. It significantly boosts system energy efficiency during low-load scenarios and reduces energy consumption.
2. Operating Principles

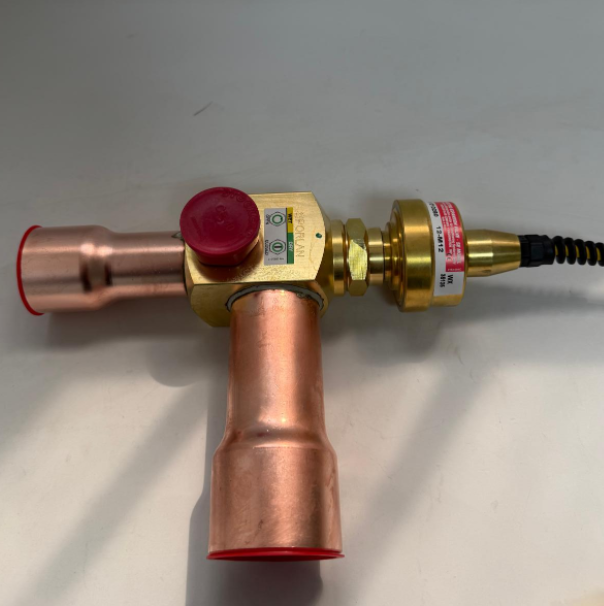

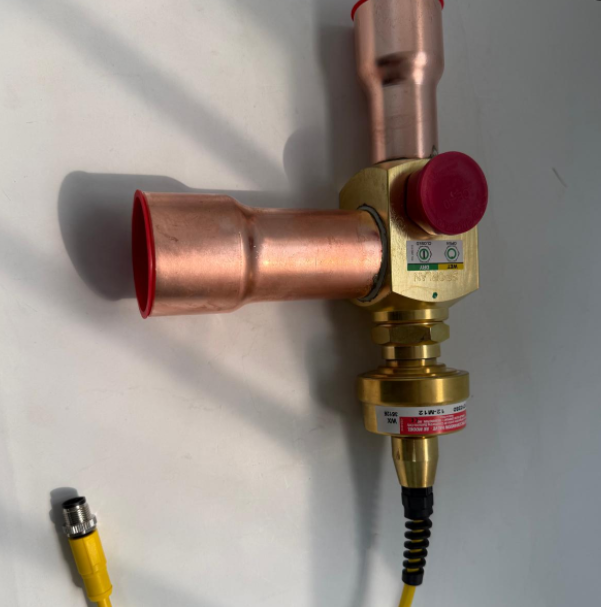

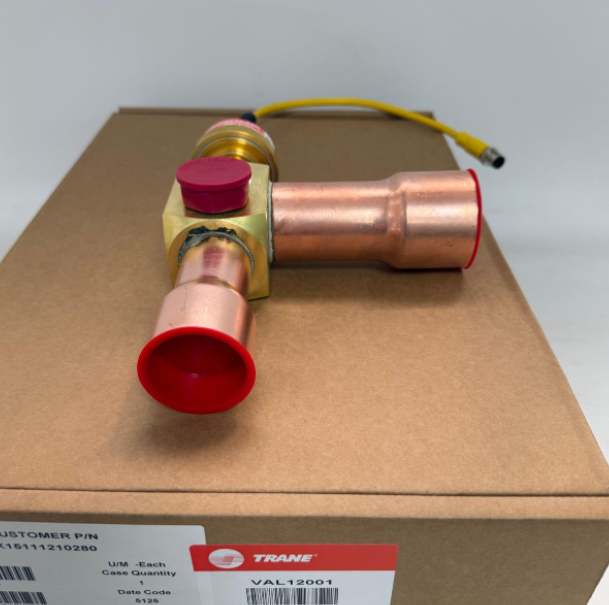

The VAL12001 is an electronically controlled expansion valve; its operating workflow is as follows:
The unit controller collects operational data, such as the temperature and pressure at the evaporator inlet and outlet;
Using specific algorithms, the controller calculates the required refrigerant flow rate and transmits a stepper motor drive signal to the valve;
The stepper motor within the valve body receives the signal and drives the valve spool to move, thereby altering the flow area of the valve orifice;
High-pressure liquid refrigerant undergoes throttling and pressure reduction, entering the evaporator in a low-pressure, atomized state to complete the flow matching required for the refrigeration cycle.
Tags: chiller spare part Commercial HVAC Replacement Part High Precision Refrigerant Control Valve HVAC Refrigeration Component Industrial Cooling System Valve thermal expansion valve Trane Chiller Valve Assembly Trane HVAC Original Valve Part Trane VAL102001 VAL102001 Expansion Valve
Technical parameter
Company Profile
Factory Profile
| Q1:For refrigeration industry, which brands are your products covering? | A1:We produce filter element replacements for brands like,Bitzer, Carrier, York, McQuay, Trane, etc… |
| Q2:Does the price include freight? | A2:The quotation is usually the factory price. We can recommend the most economical logistics plan and calculate the freight according to your destination and quantity. |
| Q3:How to ensure product quality? | A3:We have a strict quality control process, and we will carry out multiple inspections before the products leave the factory to ensure that they meet the standards. |
| Q4:Why choose us? | A4:Product reliability: We are a professional manufacturer . can offer high-quality products at the most competitive prices. Technical support: We provide technical assistance. Industry experience: We have over 10 years of experience in the refrigeration equipment service field. After-sales service: We offer professional after-sales service. Team collaboration: We have a professional team that can provide you with prompt services and delivery schedules. |
Product Advantages and Features
1. High-Reliability Design: The valve body is constructed from brass, offering excellent resistance to high pressure and corrosion, making it ideally suited for industrial-grade refrigeration applications. The valve core utilizes self-lubricating materials, significantly extending service life and reducing maintenance costs.
2. Low-Power Operation: Driven by a stepper motor, the valve exhibits extremely low power consumption in both standby and operational modes, ensuring it imposes no additional load on the unit’s control circuitry.
3. Rapid Response Capability: Compared to traditional thermal expansion valves, this unit offers a response speed to load fluctuations that is several times faster, enabling it to quickly adapt to scenarios involving unit start-ups, shutdowns, and varying load conditions.

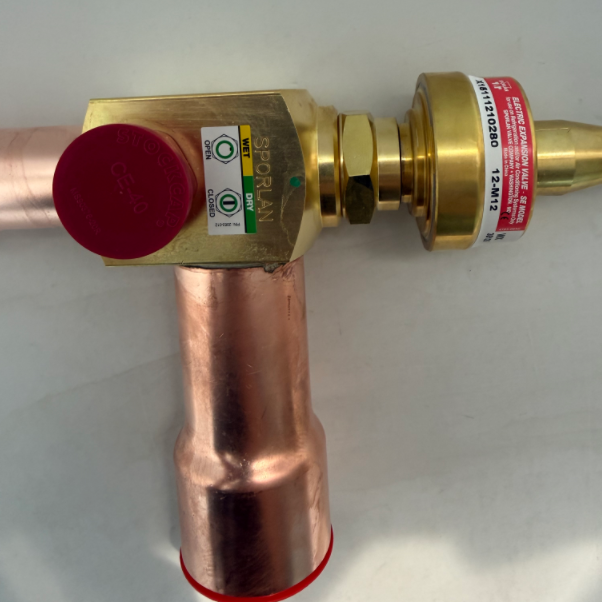

4. Integrated Status Indication: Select models within the SEHI series feature an integrated sight glass (compatible with VAL12001), allowing for the visual monitoring of refrigerant status and moisture levels to assist in troubleshooting.
