Products Description

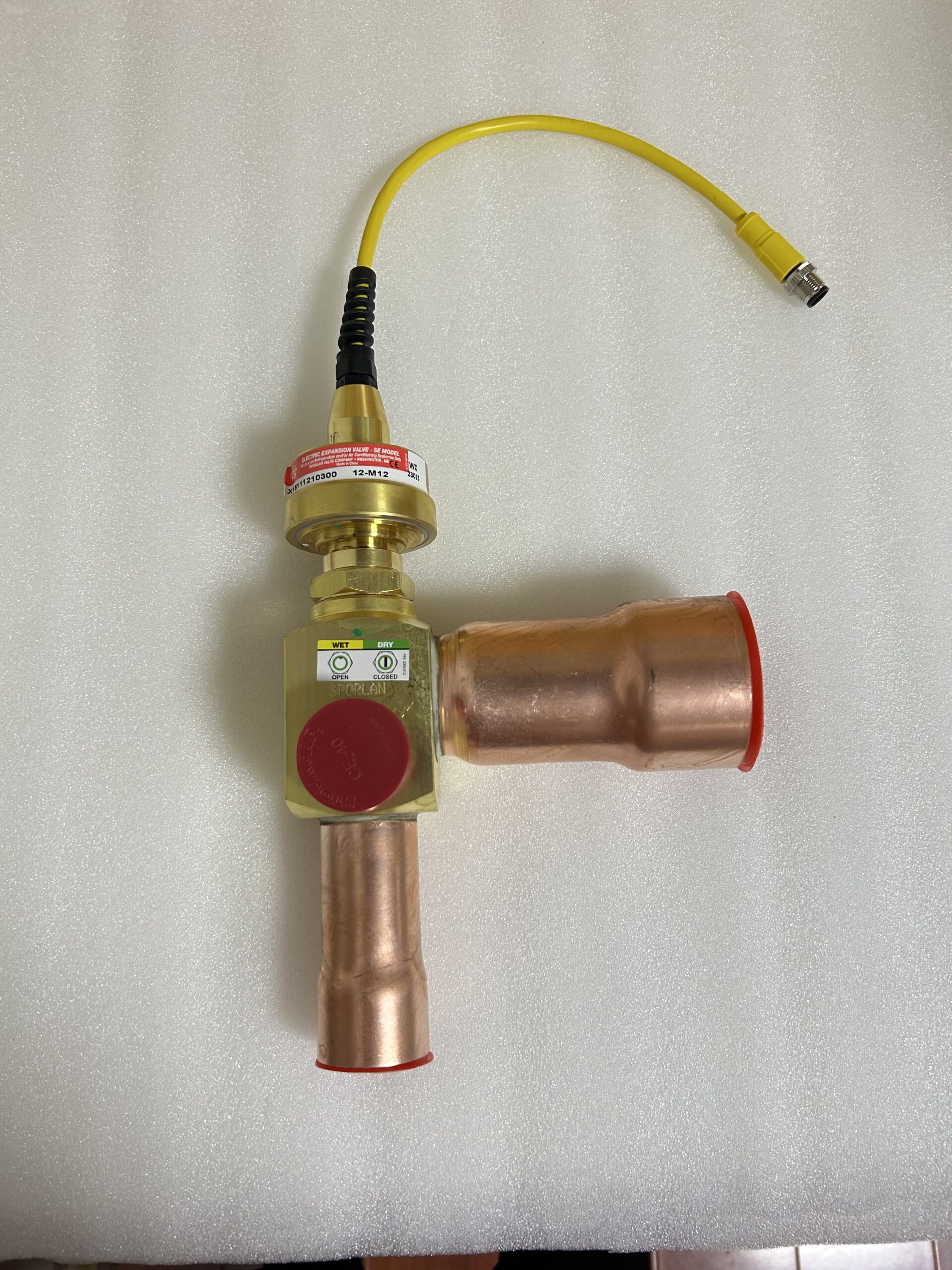

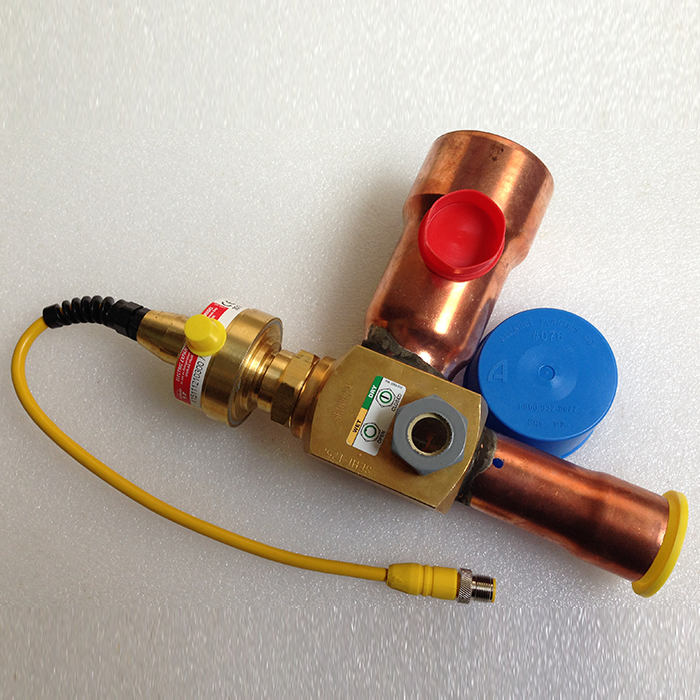

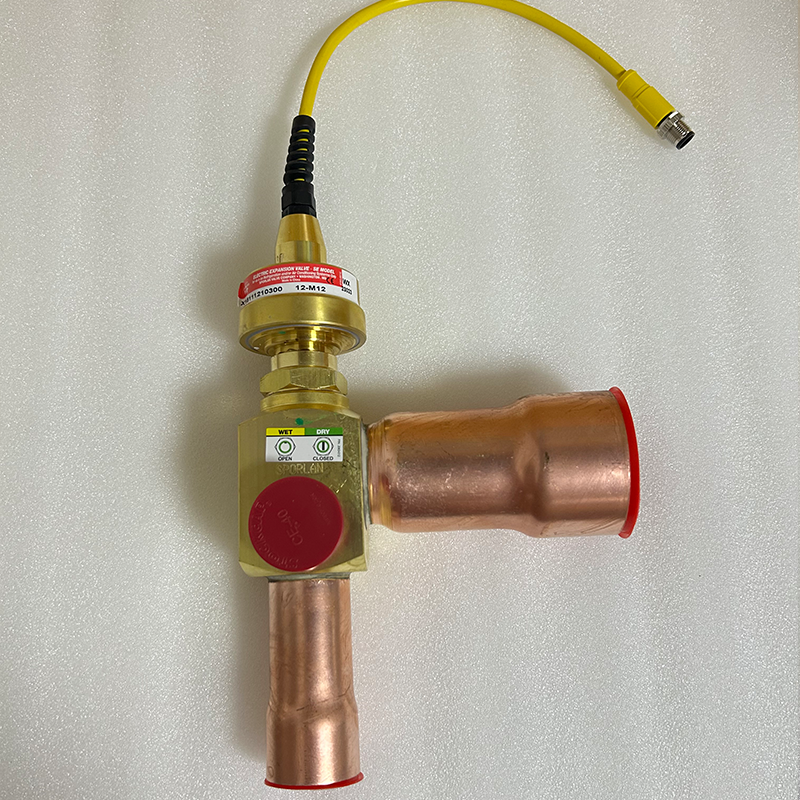

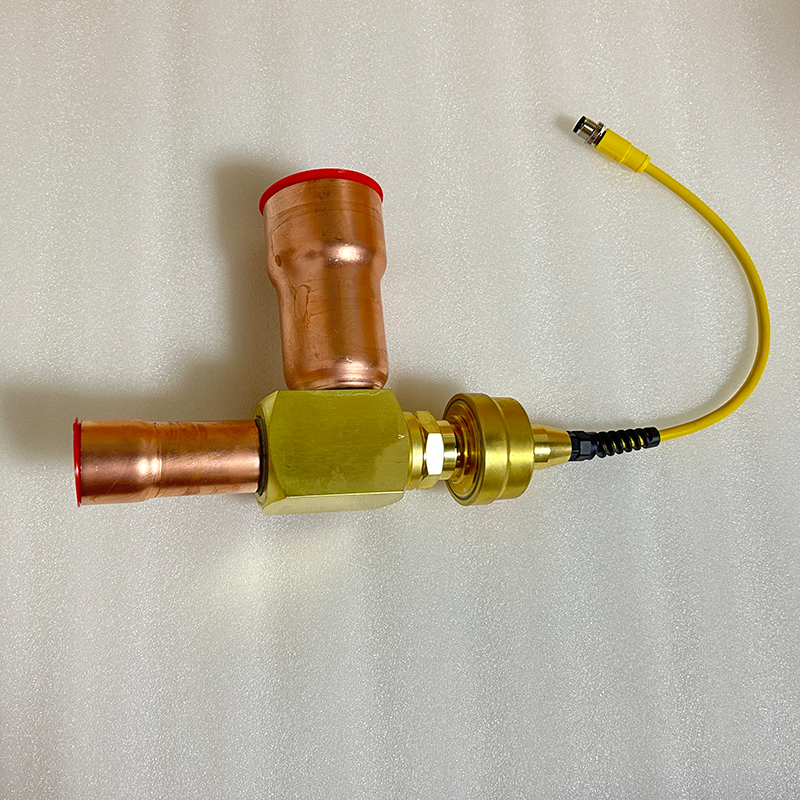

| Product Name | Trane VAL12003 Stepper Motor Electronic Expansion Valve |
| Model | VAL12003 |
| Applicable Industries | Construction and Commercial |
| Application | Refrigeration compressor |
| Packaging | Cardboard Box |
| MOQ | 1 Piece |
Trane VAL12003 Electronic Expansion Valve: Core Functions
1. Precise Throttling and Pressure Reduction (Core of the Refrigeration Cycle)
Throttles high-pressure liquid refrigerant (2.0–3.5 MPa) into low-pressure, low-temperature wet vapor (0.4–0.8 MPa), precisely matching the evaporator’s requirements for low-pressure evaporation and heat absorption;
Features multi-stage throttling combined with a smooth valve port design to minimize refrigerant flashing and noise, thereby enhancing heat exchange efficiency and achieving 8–15% greater energy savings compared to thermal expansion valves.
2. Dynamic Flow Regulation (Core of Load Adaptation)
The main controller calculates the precise valve opening position (ranging from 0 to 500 steps) in real-time, based on suction pressure, discharge temperature, superheat, and chilled water outlet temperature;
Offers a wide range of flow regulation (5–100% capacity), perfectly matching the 25–100% partial-load operating requirements of screw compressors and preventing frequent start-stop cycles;
Liquid Slug Protection: At low loads, the valve maintains a small, precise opening to control liquid supply, preventing liquid refrigerant from entering the compressor and thereby averting potential damage (such as bearing or rotor burnout).
3. Superheat Closed-Loop Control (Core of System Stability)
Works in conjunction with evaporator outlet temperature sensors and suction pressure sensors to maintain precise closed-loop control of superheat within a range of 3–8 K (adjustable);
If superheat is too high → the valve opening increases to boost liquid supply and enhance cooling capacity; if superheat is too low → the valve opening decreases to reduce liquid supply and prevent liquid slugging;
Features rapid response capabilities (≤200 ms) to effectively adapt to sudden load changes, ambient temperature fluctuations, unit start-ups, shut-downs, and other dynamic operating conditions.
4. System Protection and Reliability (Core of Safety)
Built-in Valve Position Feedback: Transmits the current valve opening position to the main controller in real-time; performs self-diagnostics for faults (such as jamming, step loss, or motor failure) and triggers corresponding alarms;
Bi-directional Sealing & Corrosion-Resistant Body: Constructed from forged brass with PTFE seals, compatible with a wide range of refrigerants; offers superior leak prevention, aging resistance, and a service life of ≥10 years;
Power-Loss Self-Protection: Maintains the current valve position (without losing steps) during power outages; automatically resumes normal operation upon power restoration, requiring no manual recalibration.
Tags: air conditioning expansion valve chiller electronic expansion valve chiller maintenance parts chiller replacement valve commercial hvac valve cooling system control valve EEV electronic expansion valve hvac expansion valve HVAC mechanical valve HVAC Spare Parts industrial chiller valve industrial refrigeration valve refrigerant regulating valve refrigeration equipment valve refrigeration expansion valve refrigeration system component Trane chiller valve Trane hvac accessories Trane VAL12003
Technical parameter
Company Profile
Factory Profile
| Q1:For refrigeration industry, which brands are your products covering? | A1:We produce filter element replacements for brands like,Bitzer, Carrier, York, McQuay, Trane, etc… |
| Q2:Does the price include freight? | A2:The quotation is usually the factory price. We can recommend the most economical logistics plan and calculate the freight according to your destination and quantity. |
| Q3:How to ensure product quality? | A3:We have a strict quality control process, and we will carry out multiple inspections before the products leave the factory to ensure that they meet the standards. |
| Q4:Why choose us? | A4:Product reliability: We are a professional manufacturer . can offer high-quality products at the most competitive prices. Technical support: We provide technical assistance. Industry experience: We have over 10 years of experience in the refrigeration equipment service field. After-sales service: We offer professional after-sales service. Team collaboration: We have a professional team that can provide you with prompt services and delivery schedules. |
Product Structure and Design Advantages
1. Stepper Motor Drive (High Precision): Features a 48V stepper motor with a full travel range of 500 steps and 1-step fine-tuning capability; control precision far exceeds that of traditional thermal expansion valves (achieving ±0.5°C superheat control).
2. Forged Brass Valve Body (Pressure-Resistant and Leak-Proof): Integrally formed with no welded seams; rated for a pressure resistance of 4.5 MPa, effectively preventing refrigerant leakage and withstanding vibration—making it ideally suited for the harsh operating conditions found in equipment rooms.
Smooth Valve Port + Low-Noise Design: Incorporates a streamlined valve needle and seat geometry to minimize refrigerant turbulence and flashing noise, resulting in quieter unit operation (≤65 dB).
Plug-and-Play + Calibration-Free: Factory-matched for seamless integration with Trane main controllers; automatically detects valve position without the need for manual calibration, allowing for complete commissioning within just 10 minutes of replacement.
Wide Temperature & Refrigerant Compatibility: Operates across a broad temperature range of -40°C to +65°C; compatible with all mainstream eco-friendly refrigerants and suitable for both new installations and the retrofitting of existing units.
