Products Description

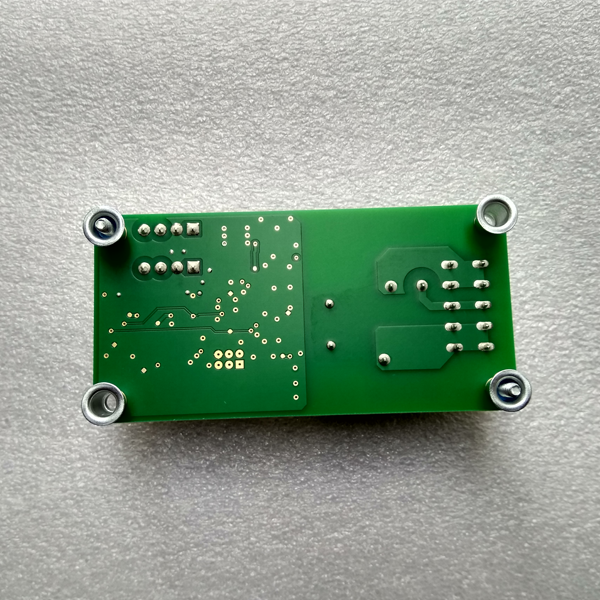

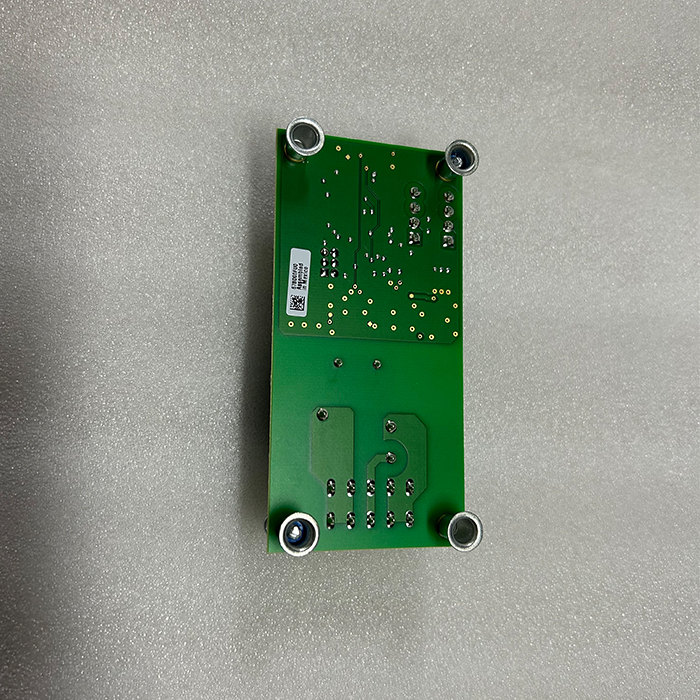

| Product Name | Trane MOD01401 Chiller Circuit Board |
| Model | MOD01401 |
| Applicable Industries | Construction and Commercial |
| Application | Refrigeration compressor |
| Packaging | Cardboard Box |
| MOQ | 1 Piece |

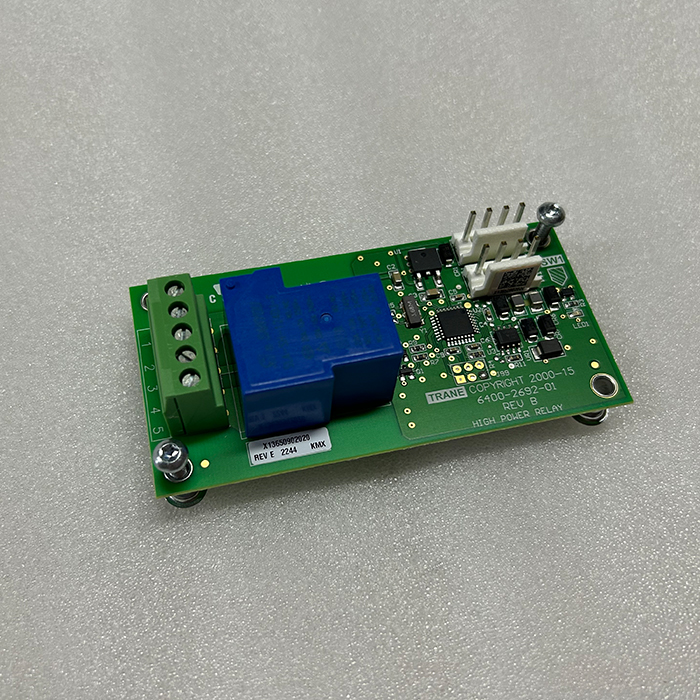

Trane MOD01401 High-Power Relay Output Board
Structural and Design Advantages
1. Industrial-Grade High-Power Relays: Utilizes highly reliable, sealed relays featuring arc-resistant and anti-erosion contacts; rated for a service life of ≥100,000 cycles, making them ideal for continuous 24-hour operation.
2. Robust Isolation and Interference Immunity: Features complete electrical isolation between high- and low-voltage circuits, combined with optocoupling and surge suppression; effectively filters out strong electromagnetic interference—such as that generated by VFDs and contactors within the equipment room—thereby eliminating the risk of spurious operation.
3. Compact DIN Rail Design: Characterized by a small footprint and easy installation, saving valuable space within the electrical control cabinet; designed for vertical mounting to ensure excellent heat dissipation and maintain distance from heat sources.
4. Flame-Retardant PCB + Moisture-Resistant Coating: Constructed using industrial-grade PCB materials that are flame-retardant, fire-resistant, moisture-proof, and dust-proof; built to withstand harsh equipment room environments with a projected service life of ≥10 years.
5. Native Firmware Compatibility & Calibration-Free Operation: Fully compatible with Trane’s proprietary control logic; offers “plug-and-play” functionality requiring no calibration, thereby significantly simplifying maintenance and operational management.
Tags: air conditioning circuit board Chiller Circuit Board chiller electrical board chiller maintenance parts chiller replacement board circuit board Commercial Chiller Parts control board cooling system control board electronic control board hvac circuit board HVAC Spare Parts industrial hvac module main controller board refrigeration control board refrigeration equipment board Trane chiller parts Trane circuit board Trane hvac accessories Trane MOD01401
Technical parameter
Company Profile
Factory Profile
| Q1:For refrigeration industry, which brands are your products covering? | A1:We produce filter element replacements for brands like,Bitzer, Carrier, York, McQuay, Trane, etc… |
| Q2:Does the price include freight? | A2:The quotation is usually the factory price. We can recommend the most economical logistics plan and calculate the freight according to your destination and quantity. |
| Q3:How to ensure product quality? | A3:We have a strict quality control process, and we will carry out multiple inspections before the products leave the factory to ensure that they meet the standards. |
| Q4:Why choose us? | A4:Product reliability: We are a professional manufacturer . can offer high-quality products at the most competitive prices. Technical support: We provide technical assistance. Industry experience: We have over 10 years of experience in the refrigeration equipment service field. After-sales service: We offer professional after-sales service. Team collaboration: We have a professional team that can provide you with prompt services and delivery schedules. |
Common Product Faults and Replacement Criteria
1. Oil pump fails to start / Unresponsive: Burnt relay contacts, missing control signal, control board power supply failure, load short circuit;
2. Oil pump runs continuously / Fails to stop: Sticking relay contacts, abnormal main control signal, internal circuit fault within the control board;
3. Unit reports “Oil Pump Fault”: Open-circuit / Overloaded load, damaged relay, abnormal status feedback, broken wiring;
4. Exceeded service life (≥ 8 years): Relay aging, contact oxidation, degraded electrical isolation, reduced operational stability; poses risks of erroneous operation, load burnout, or unit shutdown—replacement is recommended.
