Products Description

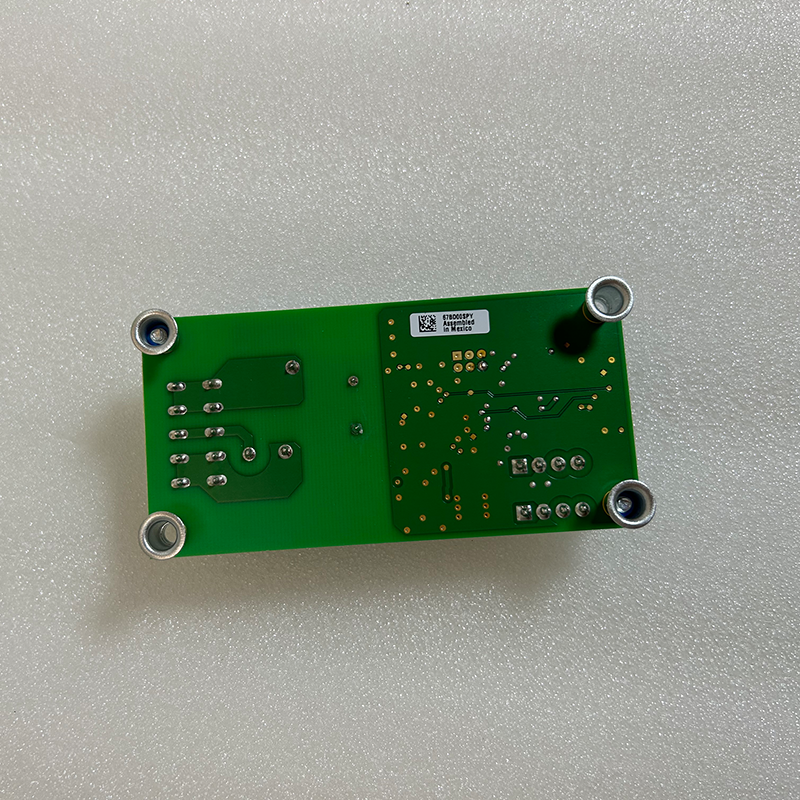

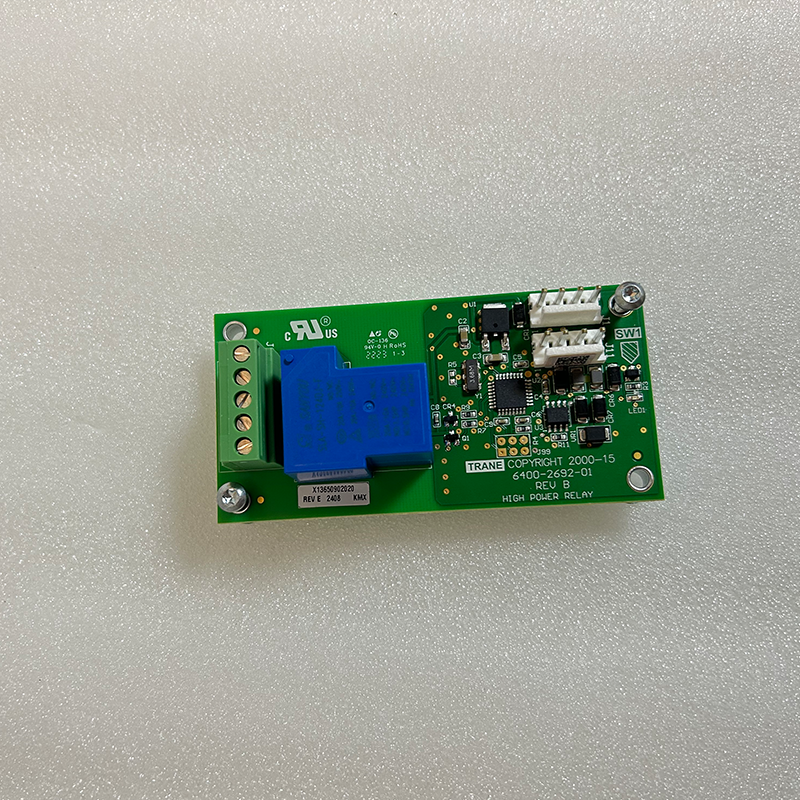

| Product Name | Trane MOD01401 High-Power Relay Output Module |
| Model | MOD01401 |
| Applicable Industries | Construction and Commercial |
| Application | Refrigeration compressor |

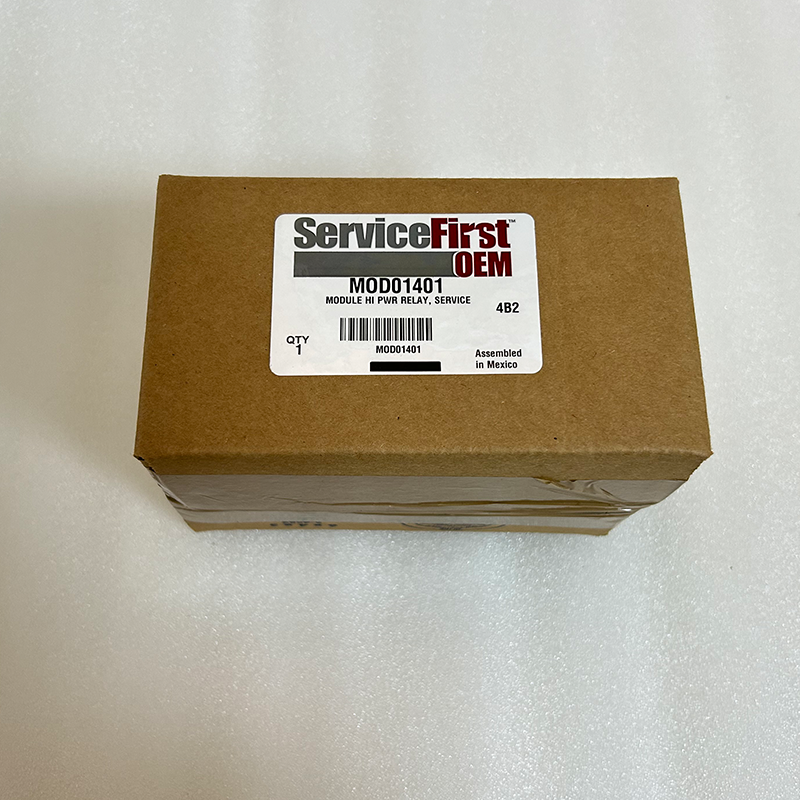

| Packaging | Cardboard Box |
| MOQ | 1 Piece |
Key Product Advantages:
Integrated design incorporating the rectifier, snubber circuit, and relay eliminates the need for external surge suppression components and simplifies electrical wiring;
Optically isolated CH bus ensures stable communication even amidst strong electromagnetic interference from VSDs, with no drift in load readings;
Modular plug-in terminal design with clear labeling minimizes the risk of wiring errors and board damage during maintenance;
Independent single-channel fault isolation ensures that the failure of an individual pump or valve does not disrupt the normal operation of the pump and cooling systems;
Lightweight, compact board structure facilitates centralized installation in confined electrical cabinets and allows for the unified layout of multiple load circuits.
Tags: central chiller maintenance spare part chiller electronic module commercial air conditioning control accessory compressor unit signal module cooling system control component HVAC circuit module industrial refrigeration replacement module MOD01401 refrigeration system electronic fitting Trane chiller spare parts Trane control module
Technical parameter
Company Profile
Factory Profile
| Q1:For refrigeration industry, which brands are your products covering? | A1:We produce filter element replacements for brands like,Bitzer, Carrier, Yk, McQuay, Trane, etc… |
| Q2:Does the price include freight? | A2:The quotation is usually the factory price. We can recommend the most economical logistics plan and calculate the freight according to your destination and quantity. |
| Q3:How to ensure product quality? | A3:We have a strict quality control process, and we will carry out multiple inspections before the products leave the factory to ensure that they meet the standards. |
| Q4:Why choose us? | A4:Product reliability: We are a professional manufacturer . can offer high-quality products at the most competitive prices. Technical support: We provide technical assistance. Industry experience: We have over 10 years of experience in the refrigeration equipment service field. After-sales service: We offer professional after-sales service. Team collaboration: We have a professional team that can provide you with prompt services and delivery schedules. |
Precautions for product installation and replacement:
1. Completely disconnect power to both the 380V power circuit and the 24V control circuit; wait for capacitors to fully discharge, as static electricity can easily damage the MCU chip.
2. Before disassembly, take clear photos to document the wiring sequence of ribbon cables and green terminal blocks; incorrect wiring will destroy the module and the CH530 main controller.
3. Clean oil residue and metal dust from the interior of the electrical control cabinet; dust accumulation on circuit boards can cause terminal short circuits and accelerate capacitor aging.
4. Tighten the four corner screws evenly to avoid uneven pressure that could crack the PCB traces.
5. Route power load cables separately from the thin CH communication wires to minimize electromagnetic interference.
6. Perform a no-load test on the oil pump, air pump, and solenoid valves; ensure stable start-stop operation for 30 minutes without triggering overload or communication fault alarms.
