Products Description

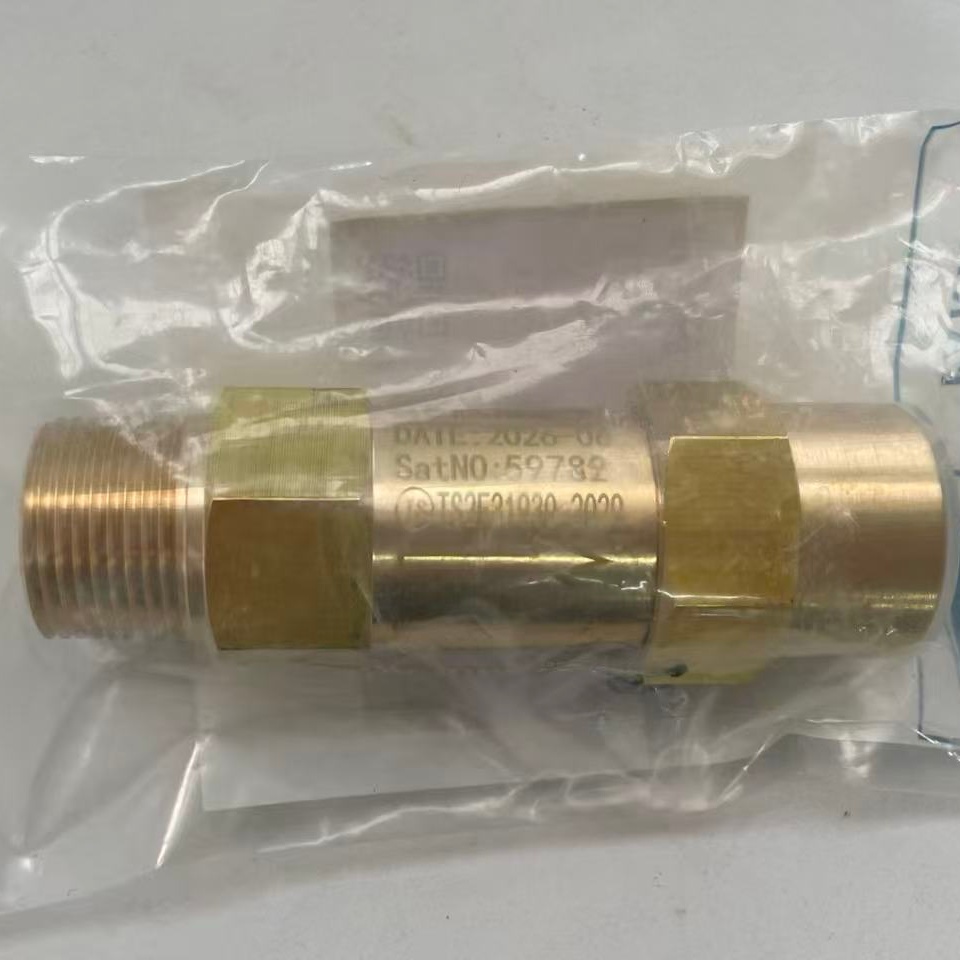

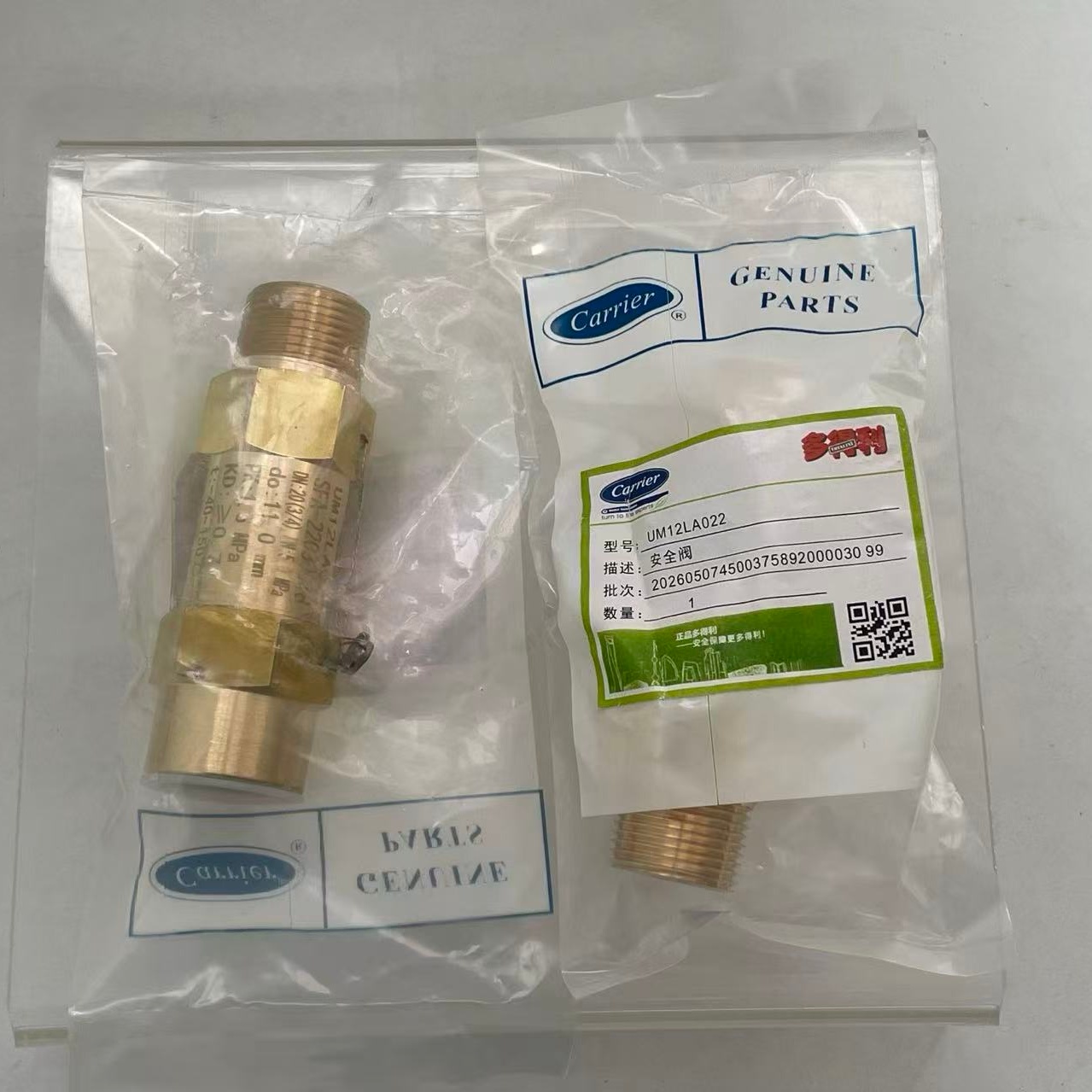

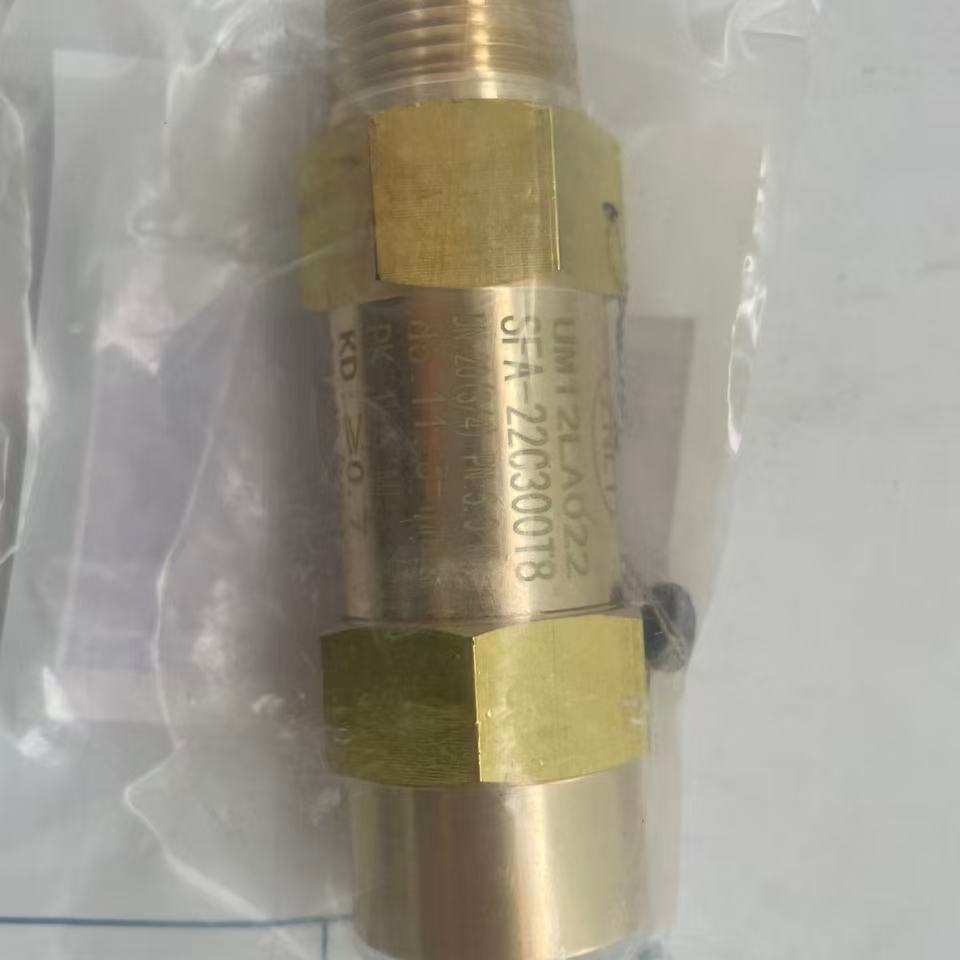

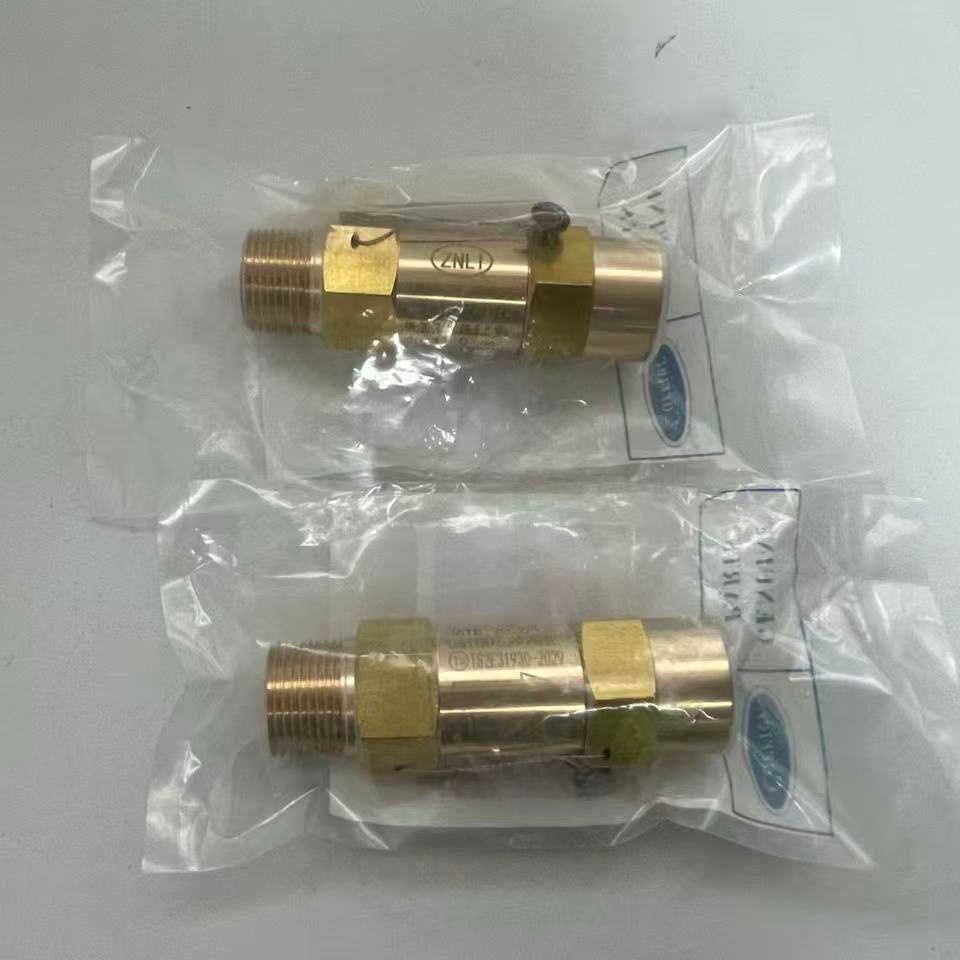

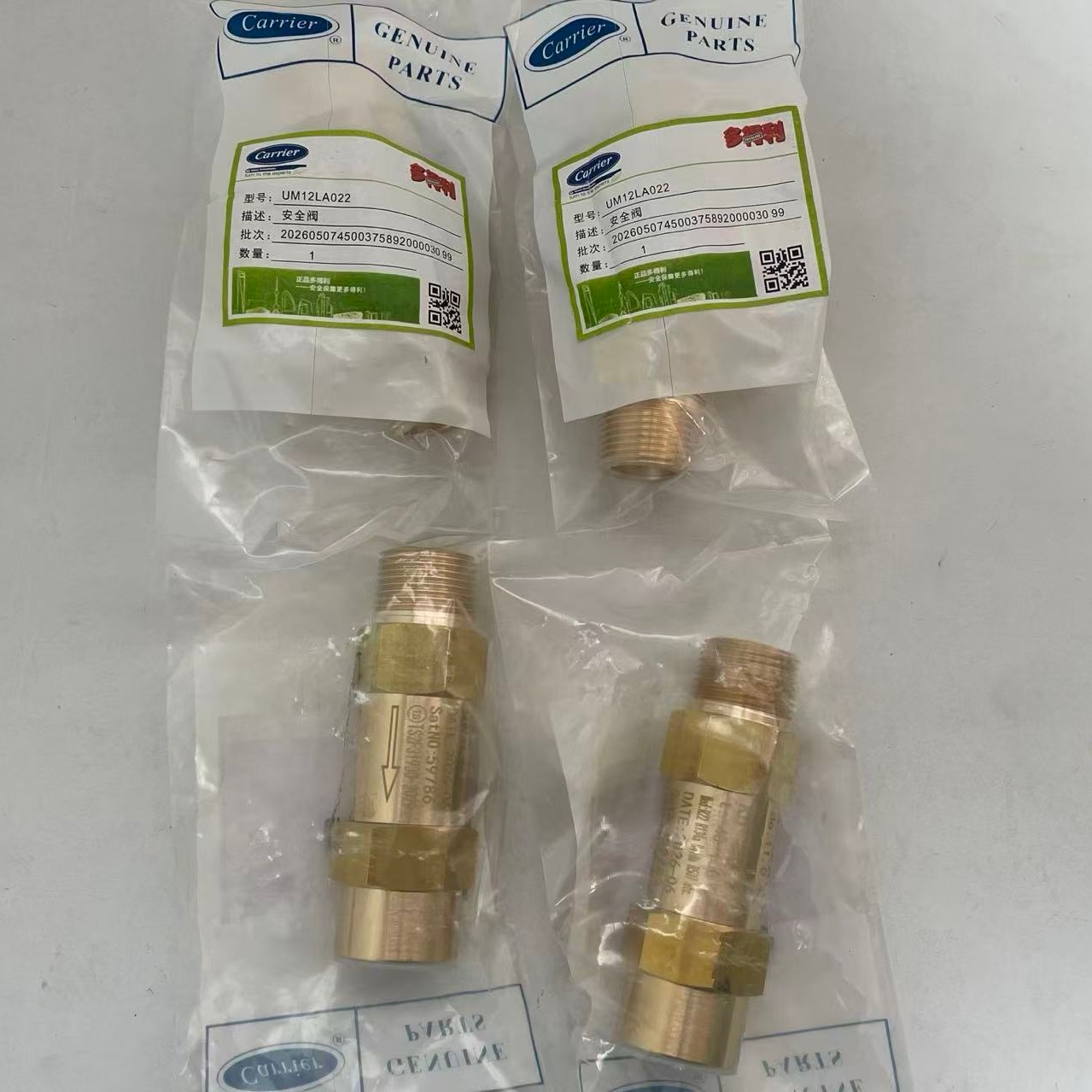

| Product Name | Carrier UM12LA022 Safety Valve |
| Model | UM12LA022 |
| Applicable Industries | Construction and Commercial |
| Application | Refrigeration compressor |
| Packaging | Cardboard Box |
| MOQ | 1 Piece |
Pressure Relief Core Fluid Performance:
Precision 1.6 MPa Opening for Overpressure Protection (Core Function)
Automatically activates when the high-pressure side of the water-cooled screw system reaches 1.6 MPa; rapidly releases excess refrigerant to maintain chamber pressure within safe limits, preventing safety incidents such as the bursting or explosion of copper piping and heat exchangers.
Long-lasting, Zero-leakage PTFE Seal
Unlike NBR rubber, the PTFE seal offers high-temperature resistance and immunity to swelling caused by R134a refrigerant; it ensures no micro-leakage during prolonged static periods, preventing slow refrigerant loss while the unit is shut down and pressurized.
Full-lift, High-flow Relief Design
Features a DN20 bore that opens fully the instant overpressure occurs, providing sufficient flow capacity to eliminate the risk of sustained overpressure conditions where relief might otherwise fail.
Vertical Unidirectional Installation; No Backflow
The valve body permits fluid discharge only in the upward direction; the spring automatically resets and closes the valve after relief is complete, maintaining system sealing post-shutdown and preventing refrigerant backflow.
Tags: Carrier replacement spare parts Carrier safety valve chiller relief valve commercial air conditioning safety valve compressor unit safety accessory cooling system pressure control component HVAC pressure protection valve industrial chiller safety fitting refrigerant pipeline overpressure protection valve refrigeration maintenance safety part refrigeration safety relief valve UM12LA022
Technical parameter
Company Profile
Factory Profile
| Q1:For refrigeration industry, which brands are your products covering? | A1:We produce filter element replacements for brands like,Bitzer, Carrier, Yk, McQuay, Trane, etc… |
| Q2:Does the price include freight? | A2:The quotation is usually the factory price. We can recommend the most economical logistics plan and calculate the freight according to your destination and quantity. |
| Q3:How to ensure product quality? | A3:We have a strict quality control process, and we will carry out multiple inspections before the products leave the factory to ensure that they meet the standards. |
| Q4:Why choose us? | A4:Product reliability: We are a professional manufacturer . can offer high-quality products at the most competitive prices. Technical support: We provide technical assistance. Industry experience: We have over 10 years of experience in the refrigeration equipment service field. After-sales service: We offer professional after-sales service. Team collaboration: We have a professional team that can provide you with prompt services and delivery schedules. |
Internal structural materials and components:
Hot-forged brass valve body (pressure-bearing main component): withstands system refrigerant pressure;
PTFE sealing disc: ensures zero leakage in the closed position;
304 stainless steel pressure spring: provides preload and controls the opening pressure;
Stainless steel adjustment lock nut + lead seal: fixes the set pressure at the factory and prevents unauthorized tampering;
Top pressure-relief/diversion outlet: enables safe discharge of refrigerant.
