Products Description

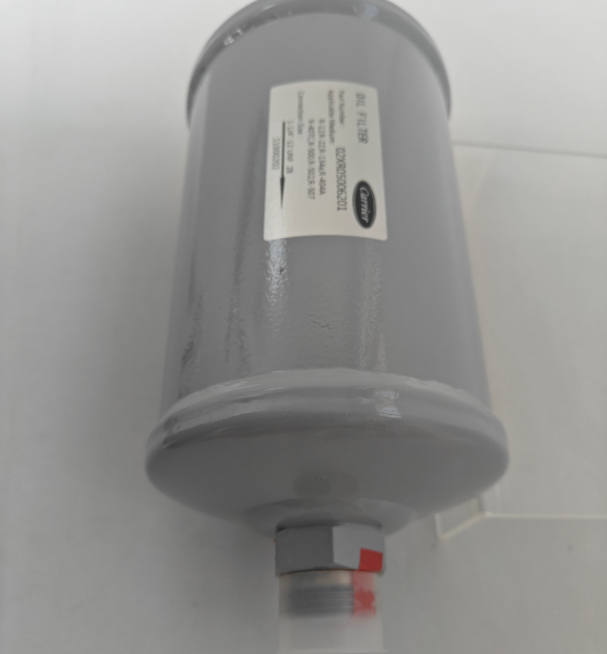

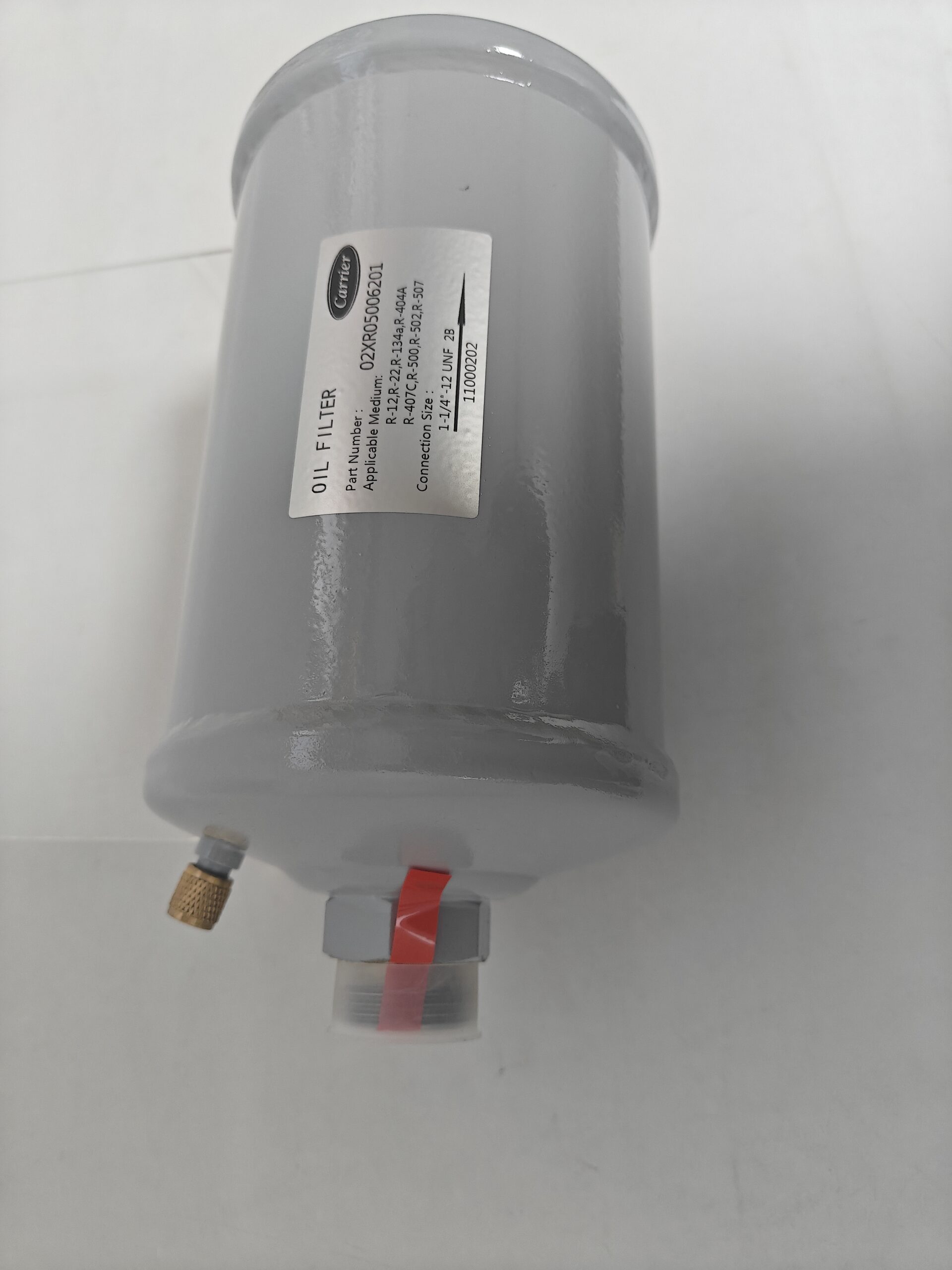

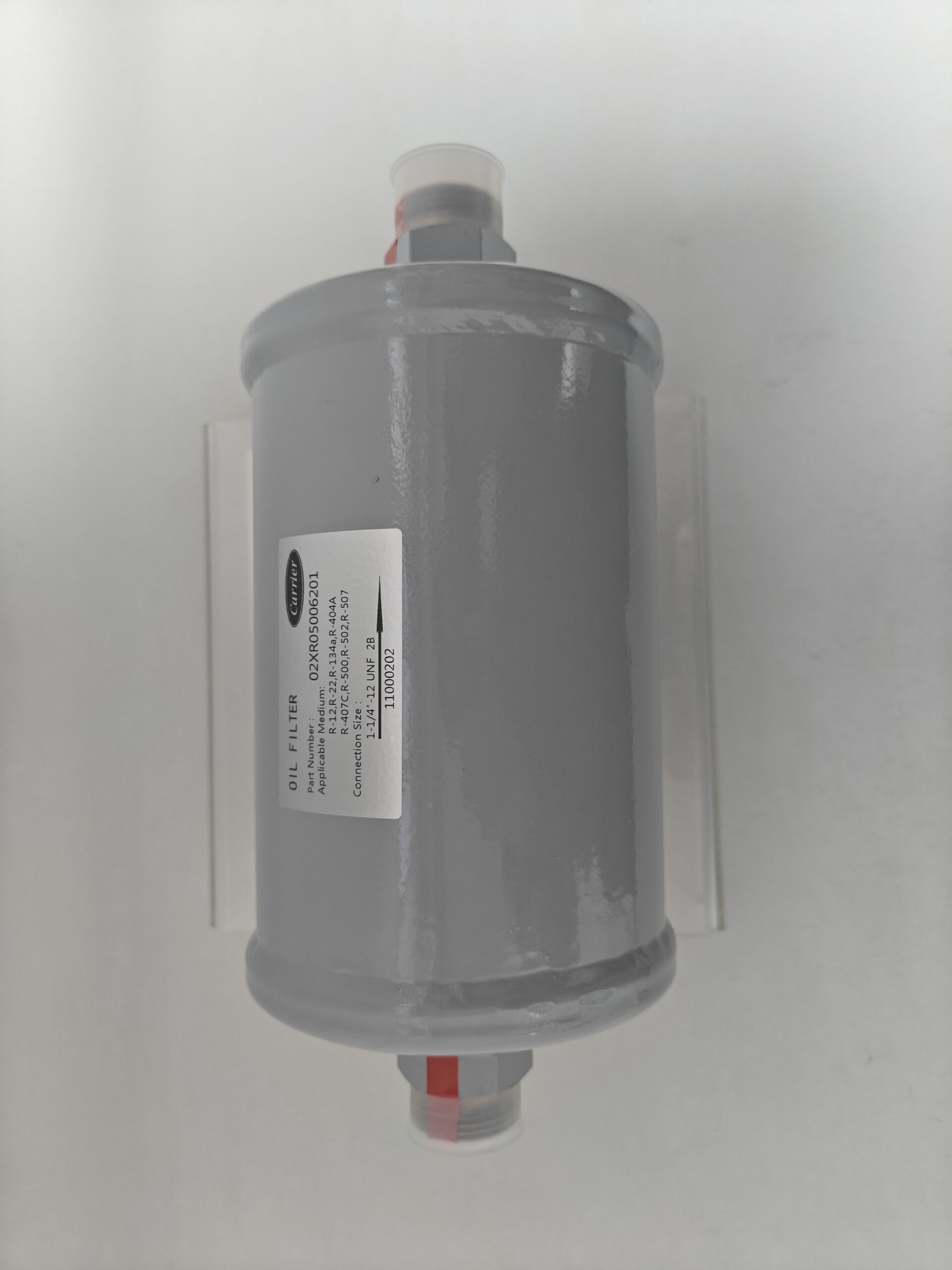

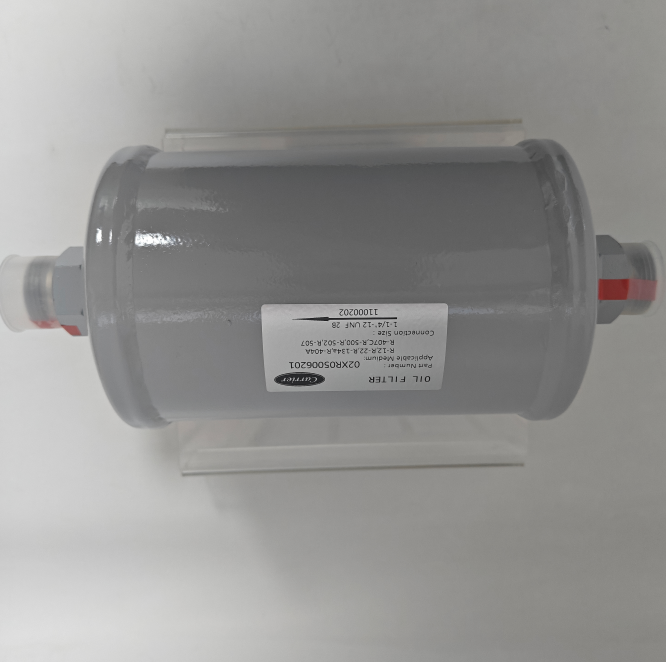

| Product Name | Carrier 02XR05006201 External Oil Filter |
| Model | 02XR05006201 |
| Applicable Industries | Construction and Commercial |
| Application | Refrigeration compressor |
| Packaging | Cardboard Box |
| MOQ | 1 Piece |
Product Construction and Material Composition:
1. Seamless epoxy-coated steel housing (main shell)
A seamless steel tube formed via integral rolling; rated for 34 bar pressure to withstand the centrifuge’s high-pressure oil circuit conditions, with machined end caps for sealing.
2. Outer galvanized protective steel mesh
Acts as a primary coarse filter to block large welding slag and rust particles from directly impacting the fiberglass filter media, thereby extending the filter element’s service life.
3. Multi-layer pleated fiberglass filter element (filtration core)
Features an ultra-fine pleated fiberglass layer that purifies refrigeration oil and removes all hard impurities from the system, protecting the centrifuge’s high-speed impeller and main shaft bearings.
4. Inner galvanized support cylinder
A central support framework that withstands negative pressure in the oil circuit, prevents the filter media from collapsing inward and blocking the oil passage, and stabilizes the oil pump’s supply flow.
5. Viton (fluororubber) O-ring seals at the ends
Prevents high-pressure oil leakage at the housing ends and stops contaminated oil from bypassing the filter element, which would compromise filtration effectiveness.
Tags: 02XR05006201 Air conditioning oil filter Carrier external line oil filter Carrier Spare Parts Chiller maintenance accessories Chiller Oil Filter Compressor pipeline filter Cooling System Components HVAC replacement filter Industrial HVAC parts Refrigeration spare filter refrigeration system filter
Technical parameter
Company Profile
Factory Profile
| Q1:For refrigeration industry, which brands are your products covering? | A1:We produce filter element replacements for brands like,Bitzer, Carrier, Yk, McQuay, Trane, etc… |
| Q2:Does the price include freight? | A2:The quotation is usually the factory price. We can recommend the most economical logistics plan and calculate the freight according to your destination and quantity. |
| Q3:How to ensure product quality? | A3:We have a strict quality control process, and we will carry out multiple inspections before the products leave the factory to ensure that they meet the standards. |
| Q4:Why choose us? | A4:Product reliability: We are a professional manufacturer . can offer high-quality products at the most competitive prices. Technical support: We provide technical assistance. Industry experience: We have over 10 years of experience in the refrigeration equipment service field. After-sales service: We offer professional after-sales service. Team collaboration: We have a professional team that can provide you with prompt services and delivery schedules. |
Core Product Functions:
1. Precision Lubrication Oil Purification and Protection for Centrifugal Units (Core Function)
Refrigeration oil delivered by the pump fully permeates the 3μm fiberglass filter media—protected by a dual-layer steel mesh for pressure resistance—ensuring a continuous supply of clean lubricant to high-speed spindles and impeller bearings. This prevents microscopic particles from scoring bearing shells and impeller components, significantly extending the compressor’s major overhaul interval.
2. Side-Mounted Differential Pressure Monitoring for Early Clogging Detection
The housing features a dedicated pressure-sensing port for an external differential pressure switch, enabling real-time monitoring of the pressure drop across the filter element. A warning alert triggers when the differential pressure reaches 50 PSI, prompting maintenance shutdown and preventing oil supply interruption or compressor damage caused by dry running due to complete filter blockage.
3. Compact Housing with Standard Flow Capacity, Ideal for Space-Constrained Units
The shorter housing design minimizes the installation footprint, making it suitable for the tight spaces found in the electrical control rooms of legacy 19XL units and small-to-medium 19XR units; piping retrofits require minimal bracket adjustment.
4. Reusable Housing for Reduced Maintenance Costs
Only the internal filter element is replaced when saturated or spent; the durable steel housing can be reused indefinitely, eliminating the need to replace the entire filter assembly and lowering annual spare parts procurement costs.
5. All-Metal, Corrosion-Resistant Construction for 24/7 Industrial Operation
The housing, fittings, and support framework feature corrosion-resistant metal finishes, ensuring stable operation in the humid, oil-mist-laden environments of mechanical rooms without the risk of plastic components aging or cracking.
