Products Description

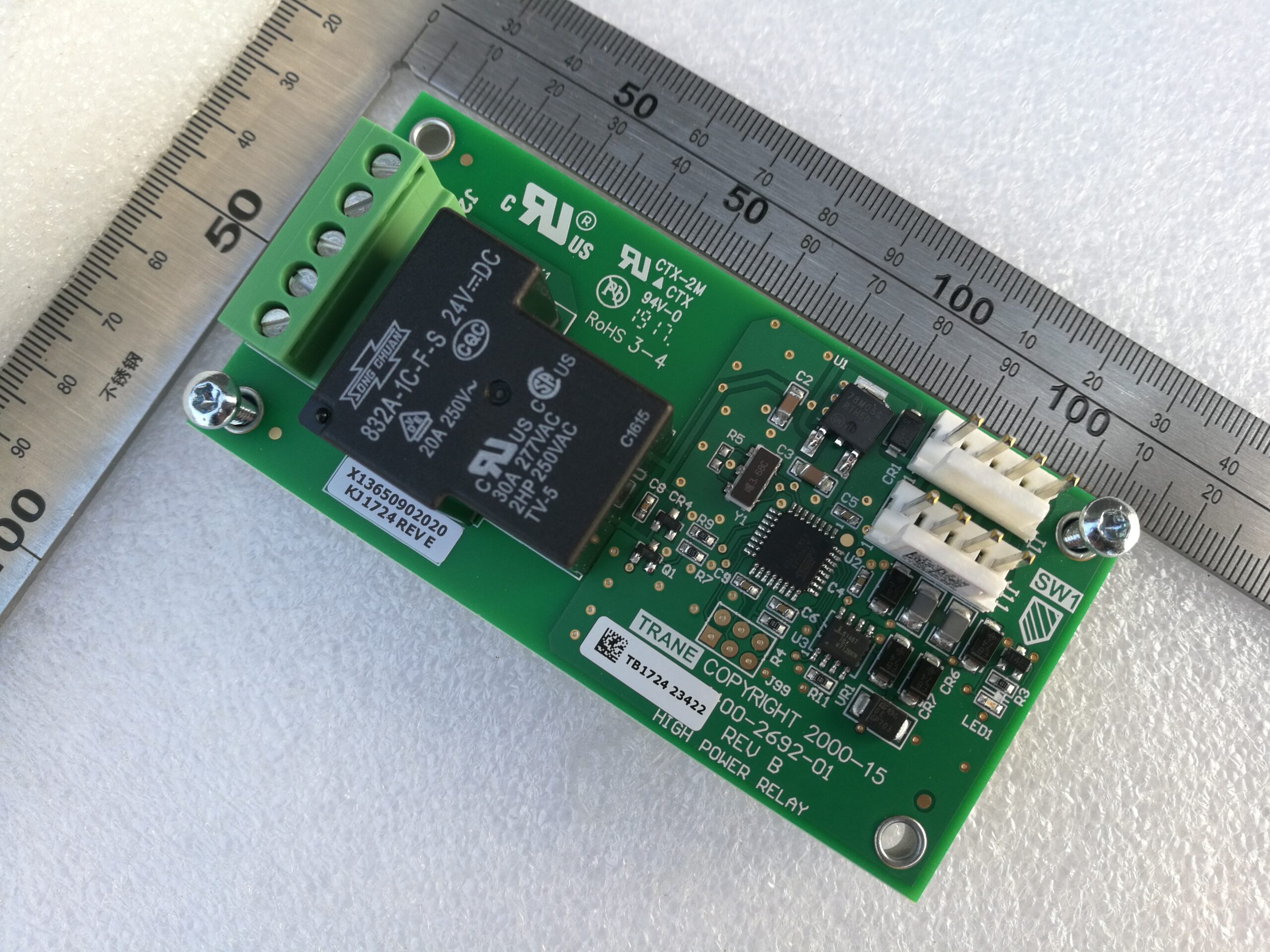

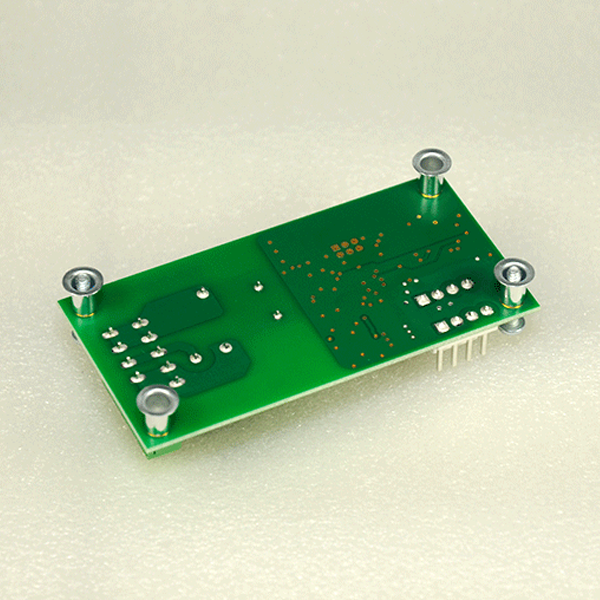

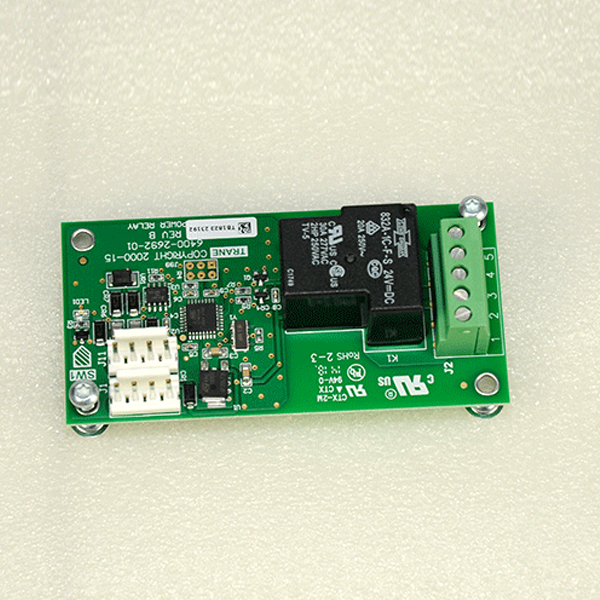

| Product Name | Trane Communication Module MOD01401 |
| Model | MOD01401 |
| Applicable Industries | Construction and Commercial |
| Application | Refrigeration compressor |
| Packaging | Cardboard Box |
| MOQ | 1 Piece |
Core Functions of the Trane MOD01401 Communication Module
1. High-Power Load Switching Control
Directly controls high-power equipment—such as compressors, electric heaters, condenser fans, and water pumps—with a maximum capacity of 30A.
Supports both Normally Open (NO) and Normally Closed (NC) contact configurations to accommodate various control logics.
2. Main Control Board I/O Expansion
Expands the I/O capabilities of CH530/UC800 main control boards by adding one independent high-power output channel, thereby resolving issues related to insufficient relay capacity on the main board itself.
Establishes a direct hardwired connection with the main control board, ensuring rapid response times and robust resistance to electrical interference.
3. Unit Safety Protection Interlocking
Enables high-voltage circuit control for critical safety functions, including fault-induced shutdowns, emergency stops, and overload protection.
Utilizes relay contacts to electrically isolate high-voltage power circuits from low-voltage control circuits, thereby safeguarding the integrity and safety of the main control board.
4. Timing Control and Load Distribution
Works in conjunction with the main control program to execute precise operational sequences, such as compressor start-up delays, fan interlocking, and automatic switching between heating and cooling modes.
Tags: building automation module chiller communication board chiller data transmission module chiller service part chiller spare part commercial chiller module electronic communication module HVAC communication module hvac control module HVAC electronic part hvac replacement part industrial communication component industrial hvac module MOD01401 refrigeration control accessory refrigeration network module refrigeration system accessory Trane chiller parts Trane communication module Trane HVAC component
Technical parameter
| Q1:For refrigeration industry, which brands are your products covering? | A1:We produce filter element replacements for brands like,Bitzer, Carrier, York, McQuay, Trane, etc… |
| Q2:Does the price include freight? | A2:The quotation is usually the factory price. We can recommend the most economical logistics plan and calculate the freight according to your destination and quantity. |
| Q3:How to ensure product quality? | A3:We have a strict quality control process, and we will carry out multiple inspections before the products leave the factory to ensure that they meet the standards. |
| Q4:Why choose us? | A4:Product reliability: We are a professional manufacturer . can offer high-quality products at the most competitive prices. Technical support: We provide technical assistance. Industry experience: We have over 10 years of experience in the refrigeration equipment service field. After-sales service: We offer professional after-sales service. Team collaboration: We have a professional team that can provide you with prompt services and delivery schedules. |
Product Installation and Maintenance Guidelines
1. Installation
Location: Securely mount inside the electrical cabinet, away from sources of strong electrical interference and heat.
Wiring: Connect ribbon cables to the main control board; wire high-power loads separately. Route contact-side wiring independently.
Heat Dissipation: Ensure adequate clearance; avoid mounting directly adjacent to other heat-generating components.
2. Maintenance
Every 3 Months: Clean surface dust; inspect wiring terminals and ribbon cable connections.
Every 6 Months: Inspect relay contacts (check for signs of burning or oxidation); perform functional testing.
In the Event of a Fault: First, troubleshoot the control signals and the load; only then replace the module to prevent secondary damage.
