Products Description

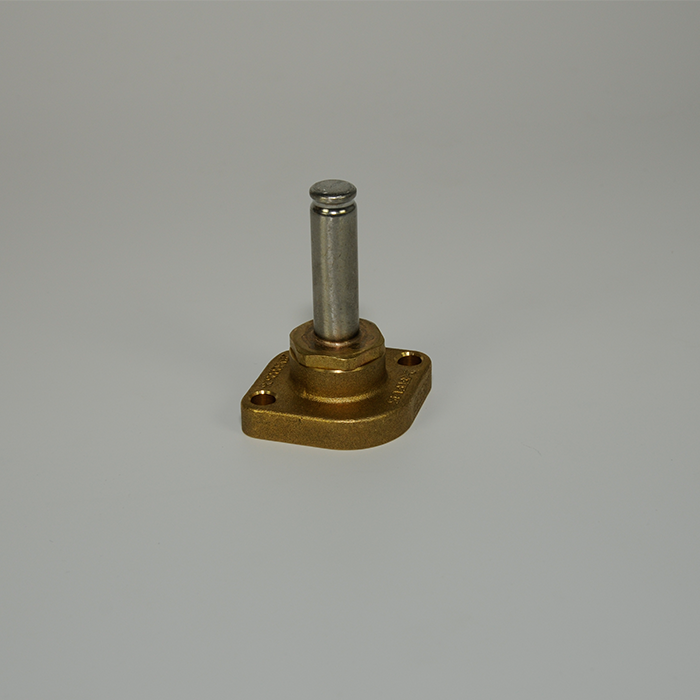

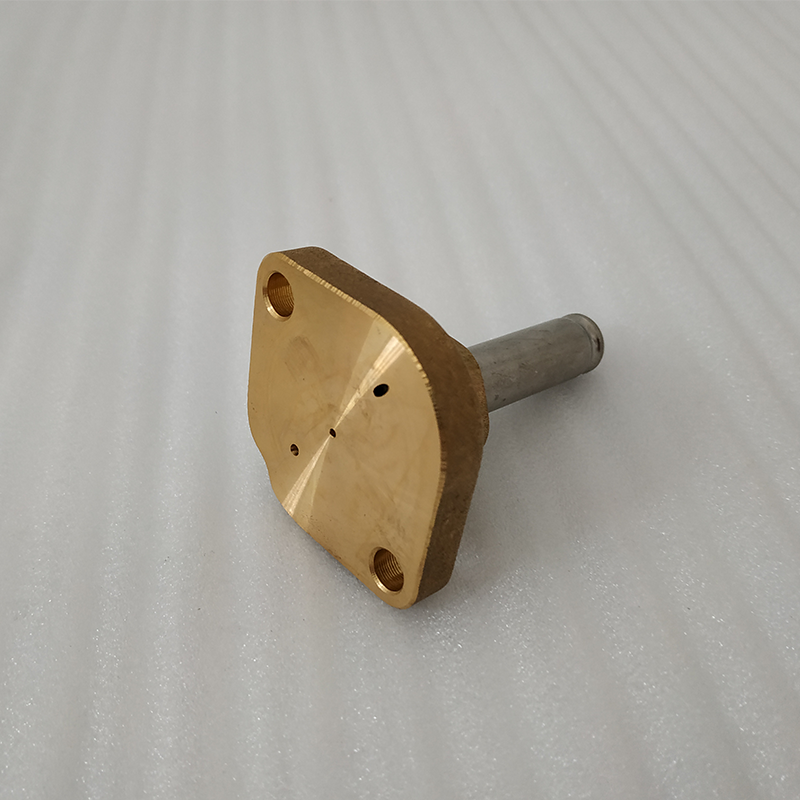

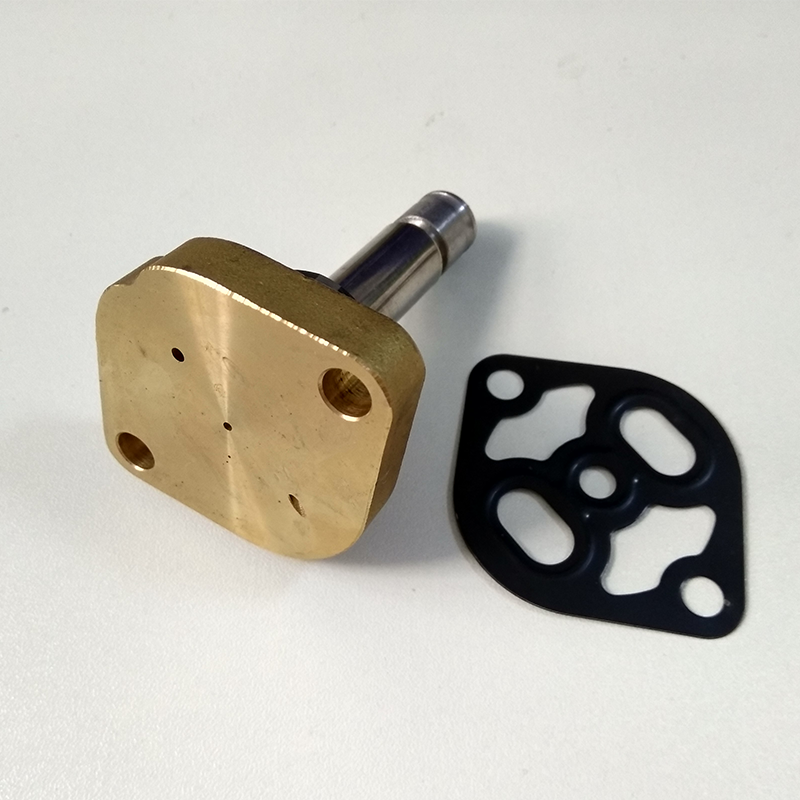

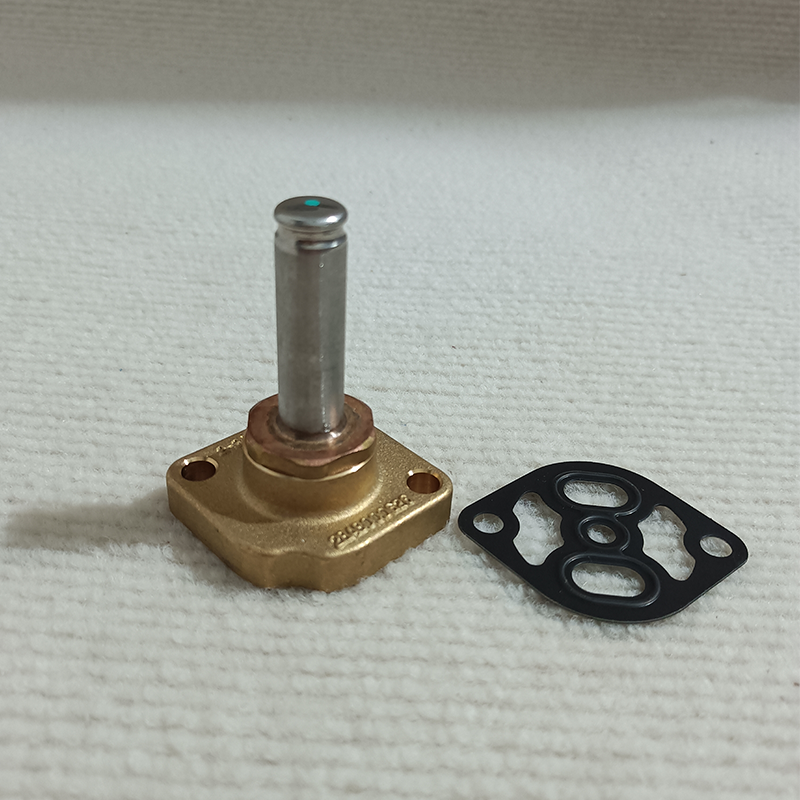

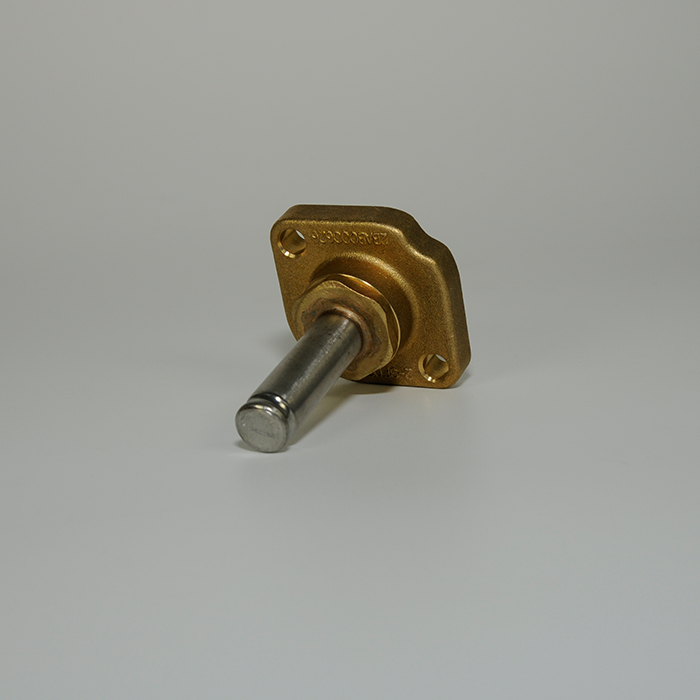

| Product Name | Carrier Solenoid Valve 8TA0049D |
| Model | 8TA0049D |
| Applicable Industries | Industry and Manufacturing; Transportation |
| Application | Refrigeration compressor |
| Packaging | Cardboard Box |
| MOQ | 1 Piece |
Functions and Roles of the Carrier 8TA0049D Solenoid Valve
1. Control of Slide Valve Operation
Receives signals from the unit controller; energizes to open and de-energizes to close, thereby controlling the flow of oil within the compressor’s slide valve circuit: Energized (Loading): The oil circuit opens, the slide valve moves toward the load direction, and the compressor loads up, increasing cooling capacity; De-energized (Unloading): The oil circuit is cut off, the slide valve returns to its home position, and the compressor unloads, reducing cooling capacity.
2. Stable Load Matching
Automatically adjusts compressor capacity (ranging from 25% to 100%) in response to changes in air conditioning load, preventing frequent start-stop cycles and achieving energy savings of 15% to 25%.
3. Start-Stop Protection
During unit startup, the compressor first unloads and then loads up, thereby reducing the starting current; during shutdown, it unloads rapidly to prevent compressor reverse rotation and liquid slugging.
4. Fault Protection
Forces the compressor to unload in the event of faults such as high pressure, overload, or low temperature, thereby protecting the compressor’s bearings, screw rotors, and motor.
5. Bi-directional Compatibility
Designed for use with Carrier 06N series screw compressors; compatible with both oil and gas media, offering sensitive regulation and rapid response times.
Tags: chiller control valve chiller flow control valve chiller maintenance part chiller solenoid valve chiller spare part compressor solenoid valve electric control valve fluid control valve hvac replacement part hvac service valve hvac solenoid valve hvac system component Industrial Chiller Part industrial refrigeration part refrigerant solenoid valve refrigeration equipment valve refrigeration solenoid assembly refrigeration solenoid valve refrigeration system valve solenoid valve
Technical parameter
Company Profile
Technical parameter
| Q1:For refrigeration industry, which brands are your products covering? | A1:We produce filter element replacements for brands like,Bitzer, Carrier, York, McQuay, Trane, etc… |
| Q2:Does the price include freight? | A2:The quotation is usually the factory price. We can recommend the most economical logistics plan and calculate the freight according to your destination and quantity. |
| Q3:How to ensure product quality? | A3:We have a strict quality control process, and we will carry out multiple inspections before the products leave the factory to ensure that they meet the standards. |
| Q4:Why choose us? | A4:Product reliability: We are a professional manufacturer . can offer high-quality products at the most competitive prices. Technical support: We provide technical assistance. Industry experience: We have over 10 years of experience in the refrigeration equipment service field. After-sales service: We offer professional after-sales service. Team collaboration: We have a professional team that can provide you with prompt services and delivery schedules. |
Product Advantages:
1. High Reliability & Durability: Constructed from brass, stainless steel, and fluororubber seals; rated for a pressure of 30 bar and a temperature of 120°C, offering an industrial-grade service life.
2. Responsive Performance: Features a fast-acting valve core (<1 second) that enables precise capacity modulation with zero hysteresis.
3. Easy Maintenance: Designed with a cartridge-style structure, allowing for replacement in just 15–30 minutes—thereby significantly reducing downtime.
4. Energy-Efficient: Delivers precise capacity control, effectively lowering compressor energy consumption and extending the overall service life of the unit.
