Products Description

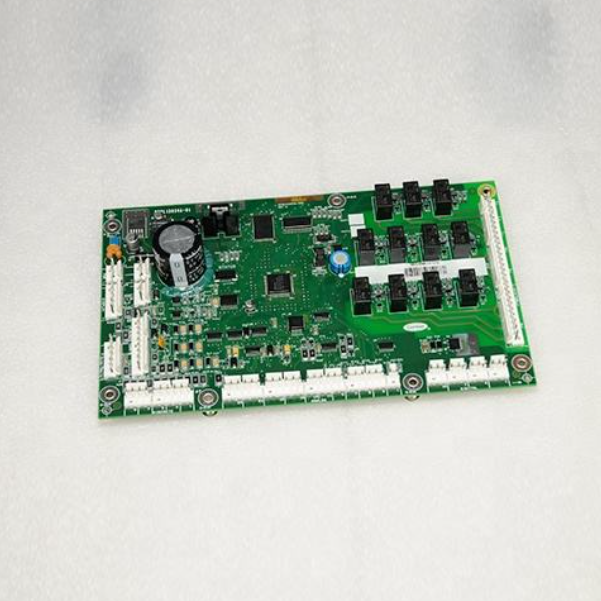

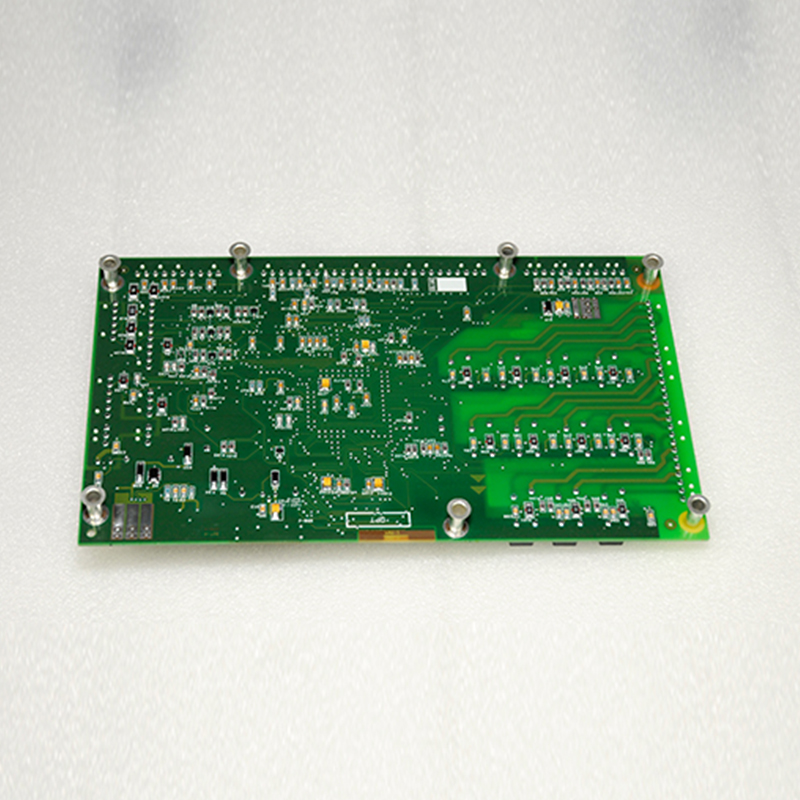

| Product Name | Carrier CPU Main Control Board HK50AA029 |
| Model | HK50AA029 |
| Applicable Industries | Construction and Commercial |
| Application | Refrigeration compressor |
| Packaging | Cardboard Box |
| MOQ | 1 Piece |
Carrier HK50AA029 Mainboard Core Functions
1. System Master Control
Unit Start/Stop / Mode Switching (Cooling / Heating / Anti-freeze)
Compressor Capacity Modulation (0–100%), Load Distribution, Start/Stop Sequencing Control
Precise Control of Refrigerant Circuit Solenoid Valves / Electronic Expansion Valves
2. Comprehensive Protection (Safety Core)
High/Low Pressure Protection, Compressor Discharge High-Temperature Protection
Motor Overload / Overcurrent / Phase Loss Protection, Oil Pressure Differential Protection
Anti-freeze Protection, Insufficient Water Flow Protection, Sensor Fault Protection
3. Real-time Monitoring and Data Processing
Acquisition of 20+ parameters, including water temperature, refrigerant temperature/pressure, current, voltage, ambient temperature, etc.
Real-time Calculation of Operating Status, Fault Self-diagnosis + Chinese Code Display
Historical Records: 500 entries of fault + operational data, including timestamps
4. Communication and Remote Management
Connection to TouchPilot Touchscreen for Local Monitoring / Configuration
BACnet/Modbus Integration with Building Automation Systems for Remote Monitoring / Control / Alarm Push Notifications
CCN Networking: Centralized Management of Multiple Units, Load Balancing, Energy-efficient Operation
Tags: Carrier Chiller Parts Carrier main board chiller control board chiller electrical board chiller motherboard chiller replacement part Compressor Control Board electronic control board HK50AA029 hvac electronic component hvac main board hvac service part hvac spare part industrial chiller component industrial hvac board refrigeration circuit board refrigeration control board refrigeration equipment control part refrigeration system board system control module
Technical parameter
Company Profile
Technical parameter
| Q1:For refrigeration industry, which brands are your products covering? | A1:We produce filter element replacements for brands like,Bitzer, Carrier, York, McQuay, Trane, etc… |
| Q2:Does the price include freight? | A2:The quotation is usually the factory price. We can recommend the most economical logistics plan and calculate the freight according to your destination and quantity. |
| Q3:How to ensure product quality? | A3:We have a strict quality control process, and we will carry out multiple inspections before the products leave the factory to ensure that they meet the standards. |
| Q4:Why choose us? | A4:Product reliability: We are a professional manufacturer . can offer high-quality products at the most competitive prices. Technical support: We provide technical assistance. Industry experience: We have over 10 years of experience in the refrigeration equipment service field. After-sales service: We offer professional after-sales service. Team collaboration: We have a professional team that can provide you with prompt services and delivery schedules. |
Product Installation, Maintenance, and Replacement
1. Installation
Location: Mount vertically inside the electrical cabinet, away from high-power components (contactors, transformers).
Wiring: Connect 24VAC power, sensors, and communication cables to their corresponding terminals; ensure all connections are securely fastened and free of looseness.
Grounding: Ensure reliable grounding to prevent electrical leakage and minimize interference.
2. Maintenance
Every 6 Months: Clean dust and oil residue from the mainboard; inspect wiring terminals; measure power supply voltage.
Annually: Perform firmware updates (if required); back up parameters/programs; conduct aging tests.
After a Fault: First, troubleshoot the sensors, wiring, and power supply; only then proceed to replace the mainboard to prevent secondary damage.
