Products Description

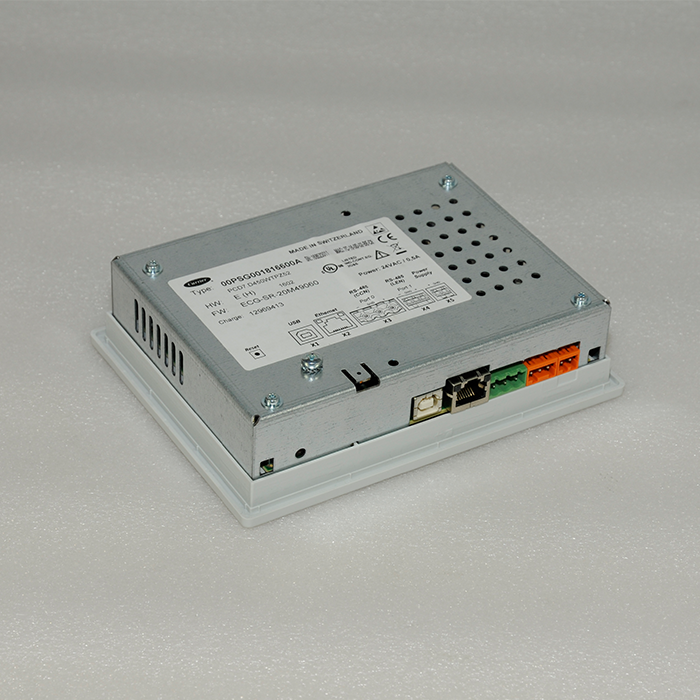

| Product Name | Carrier Refrigeration Compressor Display Screen 00PSG001816600 |
| Model | 00PSG001816600 |
| Applicable Industries | Construction and Commercial |
| Application | Refrigeration compressor |
| Packaging | Cardboard Box |
| MOQ | 1 Piece |

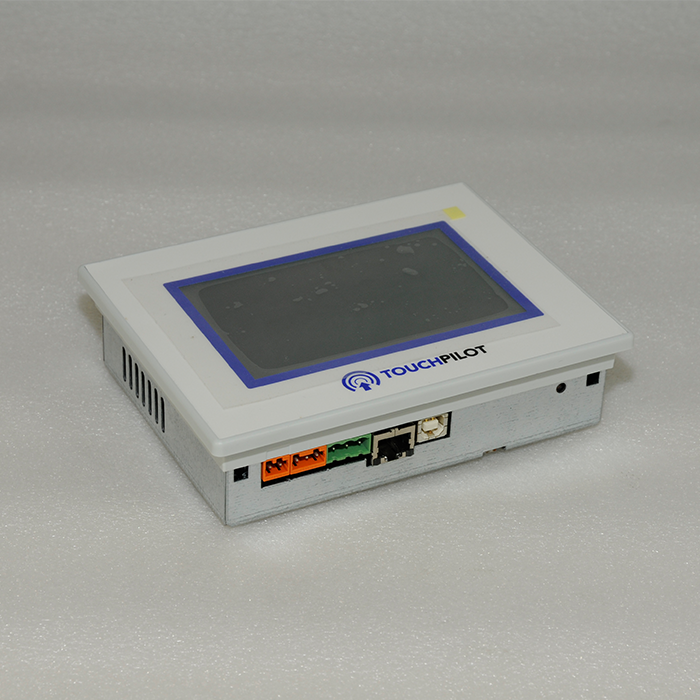

Carrier 00PSG001816600 Display Panel: Core Functions and Application Scenarios
Real-time Monitoring of All Parameters (Core Function)
Display:Water temperature (inlet/outlet), refrigerant temperature, pressure (high/low side), compressor load, current, voltage, operating frequency, ambient temperature.
Status: Run / Standby / Fault, Cooling / Heating / Anti-freeze, Compressor Start/Stop status, Fan speed, Valve opening position.
Parameter Configuration and Control
Temperature Settings:Chilled water / Hot water temperature, Anti-freeze temperature, Temperature differential.
Unit Control:Start/Stop, Mode switching, Capacity limiting, Load distribution, Defrost control.
Protection Parameters:High/Low pressure and High-temperature alarm thresholds, Overload protection, Time delay settings.
Fault Diagnosis and Alarm Management
Real-time Alarms:Fault codes + Chinese descriptions (e.g., High pressure, Low pressure, Sensor failure, Communication error).
History Records:Stores up to 500 fault/event records with timestamps; supports data export for analysis.
Fault Guidance:Troubleshooting steps for common faults, helping to reduce maintenance time.
Data Logging and Remote Communication
Data Logs:Records key parameters every 15 minutes; retains data for 3 months; supports CSV export via USB.
Remote Monitoring:BACnet IP connectivity for integration with Building Automation Systems (BAS); supports remote viewing, control, and alarm push notifications.
Firmware Upgrades:Local upgrades via USB; no need to dismantle the unit, ensuring convenient maintenance.
Compatible Units (Comprehensive Coverage)
Screw Chillers:30XW, 30XQ, 30HXC, 30HX, 30RW series.
Air-cooled Heat Pumps:30XQ, 30RQ, 30RH series.
Application Scenarios:Large-scale central air conditioning systems in commercial buildings, industrial cooling facilities, data centers, hotels, hospitals, and similar venues.
Tags: 00PSG001816600 Carrier Chiller Parts Carrier display screen carrier HVAC accessories chiller control component chiller display screen chiller monitoring screen chiller operation panel chiller spare part electronic display module HVAC control screen HVAC Display Panel HVAC electronic part hvac replacement part hvac service part industrial chiller component refrigeration control display refrigeration equipment panel refrigeration system display unit operation display
Technical parameter
Company Profile
Technical parameter
| Q1:For refrigeration industry, which brands are your products covering? | A1:We produce filter element replacements for brands like,Bitzer, Carrier, York, McQuay, Trane, etc… |
| Q2:Does the price include freight? | A2:The quotation is usually the factory price. We can recommend the most economical logistics plan and calculate the freight according to your destination and quantity. |
| Q3:How to ensure product quality? | A3:We have a strict quality control process, and we will carry out multiple inspections before the products leave the factory to ensure that they meet the standards. |
| Q4:Why choose us? | A4:Product reliability: We are a professional manufacturer . can offer high-quality products at the most competitive prices. Technical support: We provide technical assistance. Industry experience: We have over 10 years of experience in the refrigeration equipment service field. After-sales service: We offer professional after-sales service. Team collaboration: We have a professional team that can provide you with prompt services and delivery schedules. |
Common Product Faults and Diagnosis
Fault Symptoms:
1.Black Screen / No Display:Power supply failure, damaged power board, loose connections.
2.Touch Malfunction / Drift:Touchscreen aging, moisture exposure, electrostatic interference.
3.Communication Failure:Network cable fault, IP address conflict, controller mismatch.
4.Garbled / Distorted Display:Corrupted firmware, loose screen ribbon cable, electromagnetic interference.
Causes of Damage:
1.Prolonged Vibration, High Temperatures, Humidity(Common in equipment room environments).
2.Unstable Voltage, Lightning Surges, Electrostatic Breakdown.
3.Human Error / Mishandling, Water Ingress / Corrosion, Aging and Wear.
