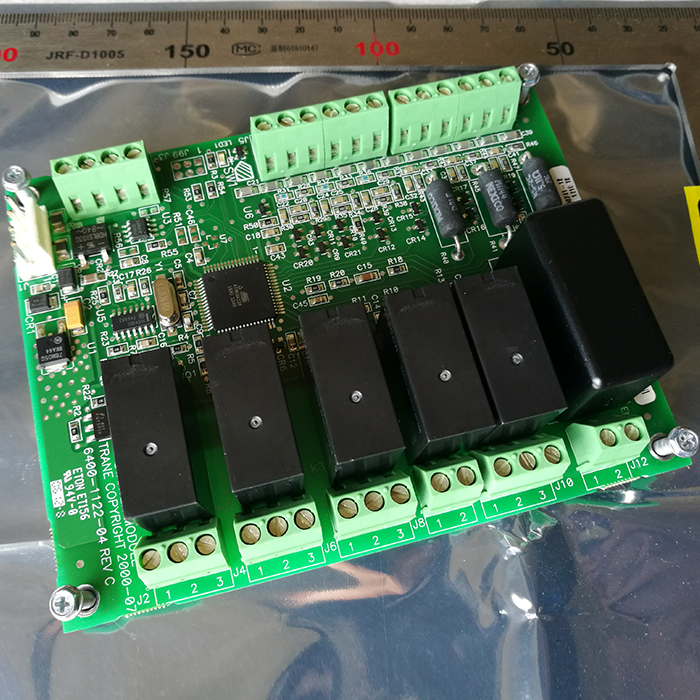

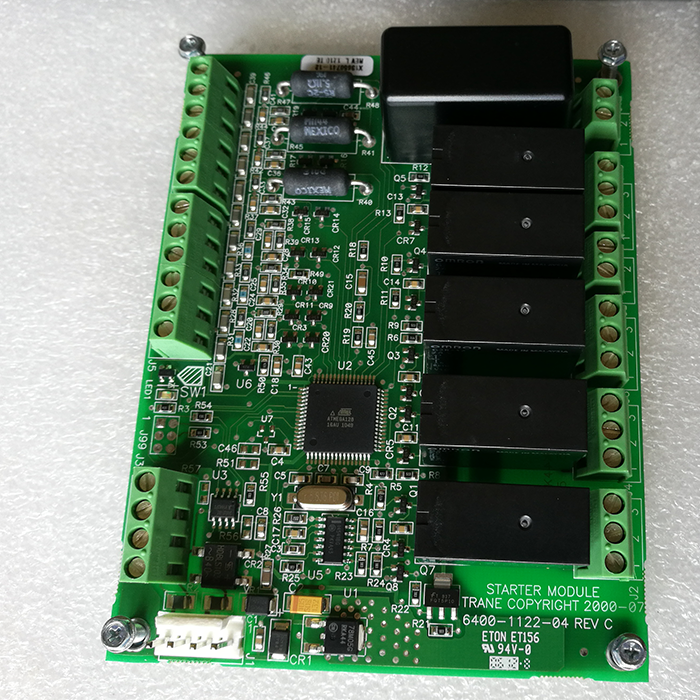

Products Description
| Product Name | Trane BRD03542 Control Board |
| Model | BRD03542 |
| Applicable Industries | Construction and Commercial |
| Application | Refrigeration compressor |
| Packaging | Cardboard Box |
| MOQ | 1 Piece |
Trane BRD03542 Control Board: Core Functions
1. Compressor Start Control
Implements Star-Delta (Y-Δ) reduced-voltage starting and soft-start timing control to minimize inrush current during startup, thereby protecting the compressor windings and the power grid.
2. Overload and Fault Protection
Real-time monitoring of compressor operating current, winding temperature, and oil pressure differential; triggers protection mechanisms for overcurrent, overload, phase loss, low oil pressure, and high temperature. In the event of a fault, the system shuts down immediately and latches the alarm status.
3. System Status Monitoring and Feedback
Acquires signals regarding compressor operating status, contactor status, power supply voltage, and other parameters; uploads this data to the main controller (CH530/UCP2) via RS485 for display of fault codes (e.g., E47/E49).
4. Interlock Control
Interlocks with fans, oil pumps, and solenoid valves to facilitate power-on self-diagnostics, sequenced startup, and coordinated shutdown in the event of a fault, thereby ensuring overall system safety.
Tags: air conditioning control board chiller control board chiller electrical board chiller main board chiller maintenance parts Chiller Spare Parts commercial chiller component control board cooling system control part electronic control board HVAC Control Board hvac replacement board industrial HVAC control module refrigeration circuit board refrigeration control board refrigeration equipment board Trane BRD03542 Trane chiller parts Trane circuit board Trane hvac accessories
Technical parameter
Company Profile
Other Product Images
| Q1:For refrigeration industry, which brands are your products covering? | A1:We produce filter element replacements for brands like,Bitzer, Carrier, York, McQuay, Trane, etc… |
| Q2:Does the price include freight? | A2:The quotation is usually the factory price. We can recommend the most economical logistics plan and calculate the freight according to your destination and quantity. |
| Q3:How to ensure product quality? | A3:We have a strict quality control process, and we will carry out multiple inspections before the products leave the factory to ensure that they meet the standards. |
| Q4:Why choose us? | A4:Product reliability: We are a professional manufacturer . can offer high-quality products at the most competitive prices. Technical support: We provide technical assistance. Industry experience: We have over 10 years of experience in the refrigeration equipment service field. After-sales service: We offer professional after-sales service. Team collaboration: We have a professional team that can provide you with prompt services and delivery schedules. |
Key Points for Product Installation and Replacement
1.Power-Off Safety Procedures:Before replacement, disconnect both the unit’s main power supply and control power supply. Allow for a discharge period of at least 5 minutes to prevent electric shock and component damage.
2.Wiring Standards:
Power Supply:AC 220V / DC 24V; ensure strict adherence to positive and negative polarity.
Current Sampling:Ensure correct wiring of CT current transformers to avoid open-circuit conditions.
Communication Lines:Verify the correct sequence of RS485 A/B lines, and ground the shielding layer at one end only.
3.Relay Outputs: Connect the terminals to the compressor contactor coils; avoid overloading the circuits.
Parameter Calibration:After replacement, use the Tracer TU tool to reconfigure the unit model parameters, current protection thresholds, and startup timing sequences. Verify that the startup and protection functions operate correctly.
4.Insulation and Protection:Ensure the device is securely mounted during installation. Keep it away from heat sources and areas subject to vibration. Implement appropriate moisture-proofing and dust-proofing measures to extend the product’s service life.
