Products Description

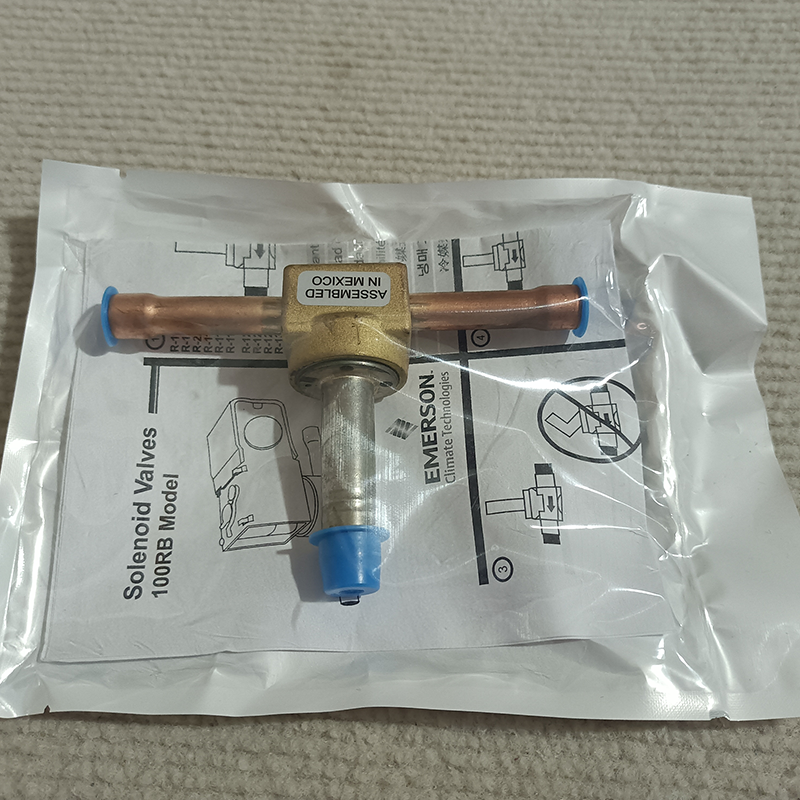

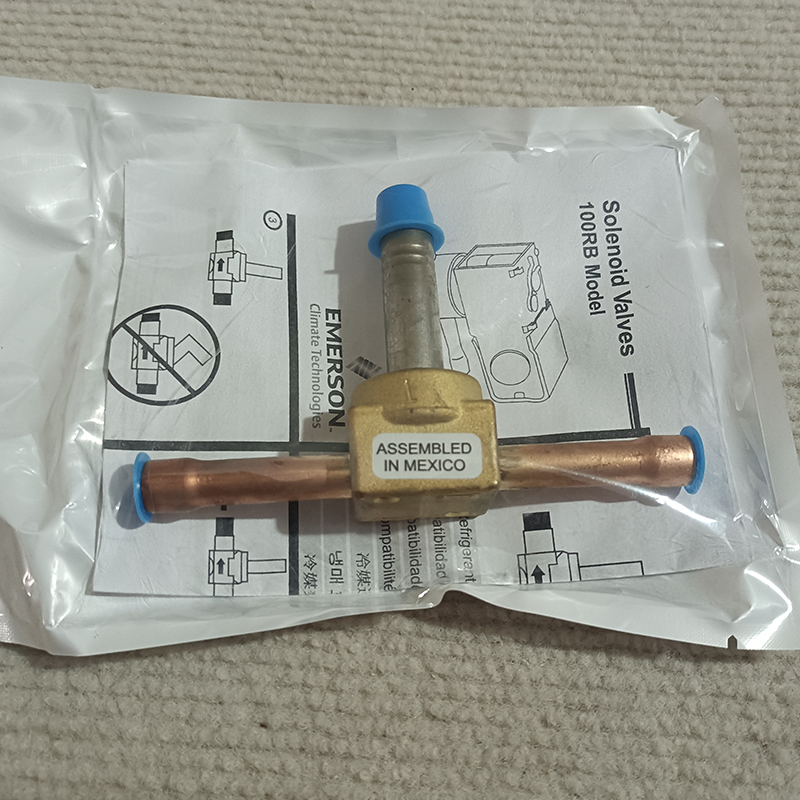

| Product Name | Trane VAL09074 Oil Return Solenoid Valve |
| Model | VAL09074 |
| Applicable Industries | Construction and Commercial |
| Application | Refrigeration compressor |
| Packaging | Cardboard Box |
| MOQ | 1 Piece |
Trane VAL09074 Oil Return Solenoid Valve: Core Functions (Oil Return Control + High-Pressure Isolation — Dual Functionality in One Unit)
1. Compressor Oil Return Control (Primary Function)
Energizes and opens during unit operation to establish a clear flow path from the oil separator to the compressor oil return line, thereby ensuring adequate compressor lubrication and preventing burnout caused by oil starvation.
De-energizes and closes upon shutdown to cut off the oil return flow, preventing oil backflow and protecting the compressor against liquid slugging.
2. High-Pressure Discharge / Oil Circuit Control (Auxiliary Function)
In select models, this valve is utilized for high-pressure discharge bypass and oil circuit loading/unloading control, enabling precise regulation of system pressure and oil volume.
3. Safety Protection (High-Pressure Isolation)
Rated for a pressure resistance of 35 bar, it provides reliable isolation on the high-pressure side, preventing refrigerant or oil leakage and ensuring safety during maintenance operations.
Tags: central cooling valve chiller maintenance parts chiller replacement parts chiller solenoid valve commercial hvac valve cooling system valve electromagnetic valve HVAC mechanical component hvac solenoid valve HVAC Spare Parts industrial chiller valve industrial refrigeration valve refrigerant valve refrigeration control valve refrigeration equipment accessory refrigeration solenoid valve solenoid valve Trane chiller parts Trane HVAC parts Trane VAL09074
Technical parameter
Company Profile
Technical parameter
| Q1:For refrigeration industry, which brands are your products covering? | A1:We produce filter element replacements for brands like,Bitzer, Carrier, York, McQuay, Trane, etc… |
| Q2:Does the price include freight? | A2:The quotation is usually the factory price. We can recommend the most economical logistics plan and calculate the freight according to your destination and quantity. |
| Q3:How to ensure product quality? | A3:We have a strict quality control process, and we will carry out multiple inspections before the products leave the factory to ensure that they meet the standards. |
| Q4:Why choose us? | A4:Product reliability: We are a professional manufacturer . can offer high-quality products at the most competitive prices. Technical support: We provide technical assistance. Industry experience: We have over 10 years of experience in the refrigeration equipment service field. After-sales service: We offer professional after-sales service. Team collaboration: We have a professional team that can provide you with prompt services and delivery schedules. |
Product Installation and Maintenance Guidelines
Installation (Brazed Connection, Leak Prevention)
Cleaning: Ensure interfaces are free of burrs and impurities, and that the copper tubing is fully seated.
Brazing: Use low-temperature brazing (silver brazing) to prevent heat damage to the coil and seals; remove the coil prior to brazing.
Orientation: Mount the valve body horizontally with the coil facing upward; avoid inverted installation. Ensure the flow direction aligns with the arrow marked on the valve body.
Pressure Testing: After installation, maintain a pressure of 25 bar for 24 hours; the unit passes if no leaks are detected.
Maintenance (Perform every 2 years / 10,000 hours, or in the event of a malfunction)
Inspection: Check for external cracks, burn marks on the coil, and leaks at the connections.
Cleaning: Flush the valve core and associated piping with refrigerant to remove oil sludge and impurities.
Component Replacement: Replace the original O-rings if leaks are detected. If the coil is burnt out or the valve core is worn, replace the entire valve assembly.
Testing: Upon energizing the valve, listen for an audible actuation sound (a crisp “click”). Measure the coil resistance (typically around 1 kΩ).
