Products Description

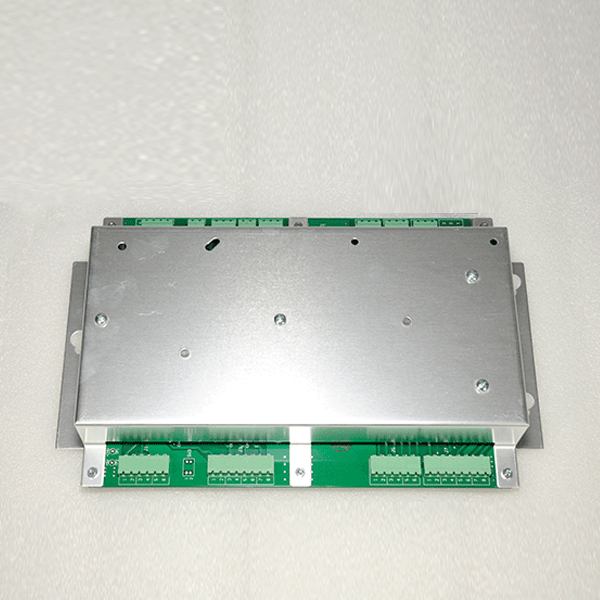

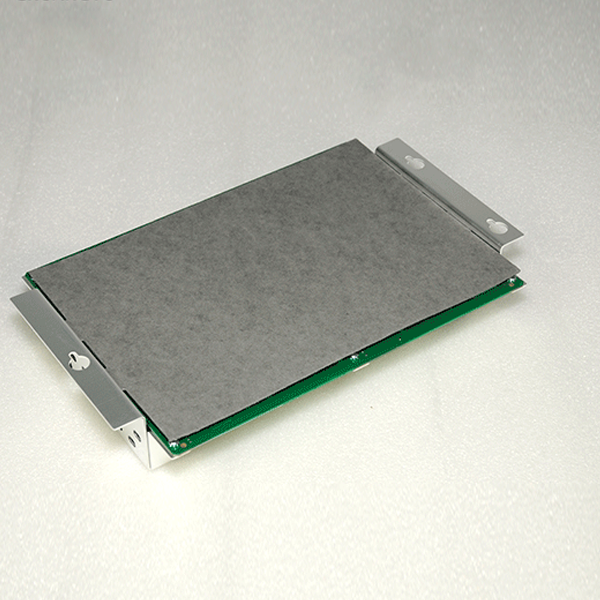

| Product Name | Trane MOD01232 Starter UCP2 Module |
| Model | MOD01232 |
| Applicable Industries | Construction and Commercial |
| Application | Refrigeration compressor |

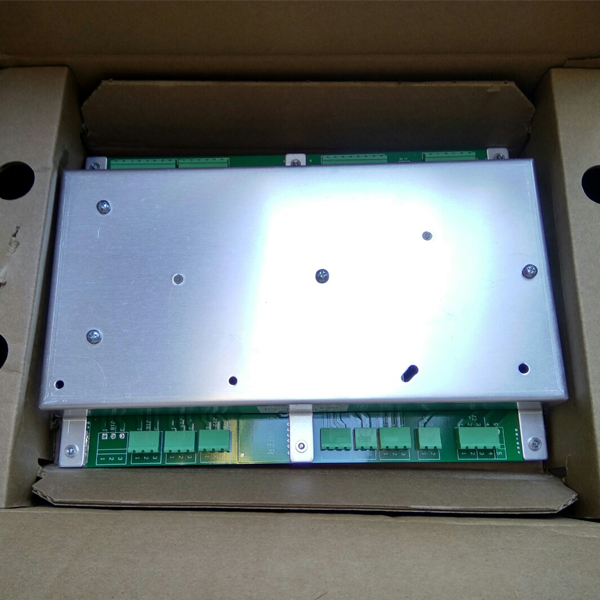

| Packaging | Cardboard Box |
| MOQ | 1 Piece |
Core Functions of the Trane MOD01232 Starter Control Module
1. Compressor Start-up Sequencing Control (Core Function)
Star-Delta (Y-Δ): Star-configuration reduced-voltage start (approx. 50% voltage) → Time delay → Switch to Delta-configuration full-voltage operation; reduces starting current (from 6x to 2x RLA).
Solid-State Soft Start (Optional): Controls voltage regulation via thyristors; ensures smooth acceleration, contact-free operation, and low electrical/mechanical shock.
2. Comprehensive Motor Protection (Prevents Burnout)
Overload Protection: Three-phase current monitoring, inverse-time characteristic curve, automatic shutdown upon overcurrent detection.
Phase Sequence / Phase Loss: Immediate lockout upon detection of incorrect phase sequence or phase loss; prevents reverse rotation and motor burnout.
Voltage Imbalance / Momentary Interruption: Shutdown protection triggered if three-phase voltage difference exceeds 10% or in the event of power loss.
Oil Pressure / High & Low Pressure Interlocks: Prevents start-up or initiates shutdown if oil pressure is insufficient, high-side pressure is excessive, or low-side pressure is too low.
3. Operational Monitoring and Data Upload
Real-time Data Acquisition: Monitors three-phase current, voltage, load rate, and winding temperature.
Data Upload: Transmits data to the 1U1 Main Controller for display and logging on the MOD01054 control panel.
4. Fault Diagnosis and Lockout
Fault Codes: Covers start-up failure, contactor welding (sticking), incorrect phase sequence, overload, and communication errors.
Fault History: Records historical faults with timestamps; implements lockout protection to prevent repeated start attempts that could cause further damage.
Tags: chiller electrical part chiller replacement part chiller starter module commercial HVAC starter compressor control module compressor starter module electrical control module electronic start module hvac spare part HVAC starter component industrial chiller starter industrial hvac electrical component motor start module refrigeration equipment starter refrigeration starter board refrigeration system component starter module Trane chiller parts Trane HVAC accessory Trane MOD01232
Technical parameter
Company Profile
Technical parameter
| Q1:For refrigeration industry, which brands are your products covering? | A1:We produce filter element replacements for brands like,Bitzer, Carrier, York, McQuay, Trane, etc… |
| Q2:Does the price include freight? | A2:The quotation is usually the factory price. We can recommend the most economical logistics plan and calculate the freight according to your destination and quantity. |
| Q3:How to ensure product quality? | A3:We have a strict quality control process, and we will carry out multiple inspections before the products leave the factory to ensure that they meet the standards. |
| Q4:Why choose us? | A4:Product reliability: We are a professional manufacturer . can offer high-quality products at the most competitive prices. Technical support: We provide technical assistance. Industry experience: We have over 10 years of experience in the refrigeration equipment service field. After-sales service: We offer professional after-sales service. Team collaboration: We have a professional team that can provide you with prompt services and delivery schedules. |
Product Installation and Maintenance Guidelines
1. Installation
Location: Mount vertically inside the electrical cabinet, away from high-power contactors and heat sources.
Wiring: 24VAC Power Supply + PIC Communication Ribbon Cable + Starter Control Lines.
Grounding: Ensure reliable grounding to minimize interference.
2. Maintenance (Every 6 months / After a Fault)
Cleaning: Blow away dust, focusing on ventilation ports and contactor terminals.
Inspection: Check ribbon cable connections, terminal tightness, and for signs of arcing/wear on contactor contacts.
Testing: Simulate the startup sequence, phase sequence protection, and overload protection functions.
Cooling: Ensure the surrounding area is unobstructed and the ambient temperature remains below 50°C.
