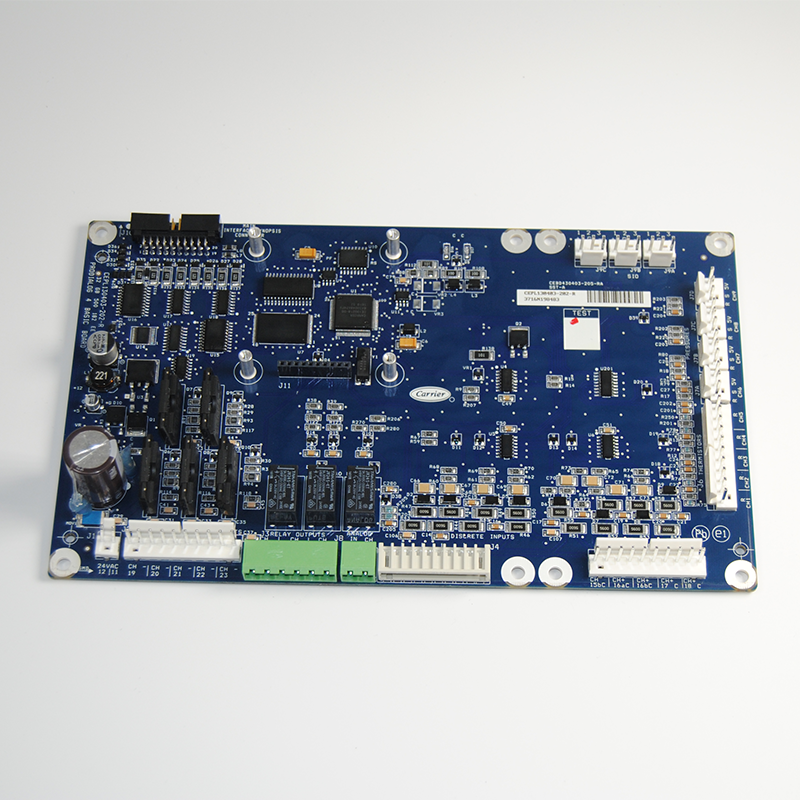

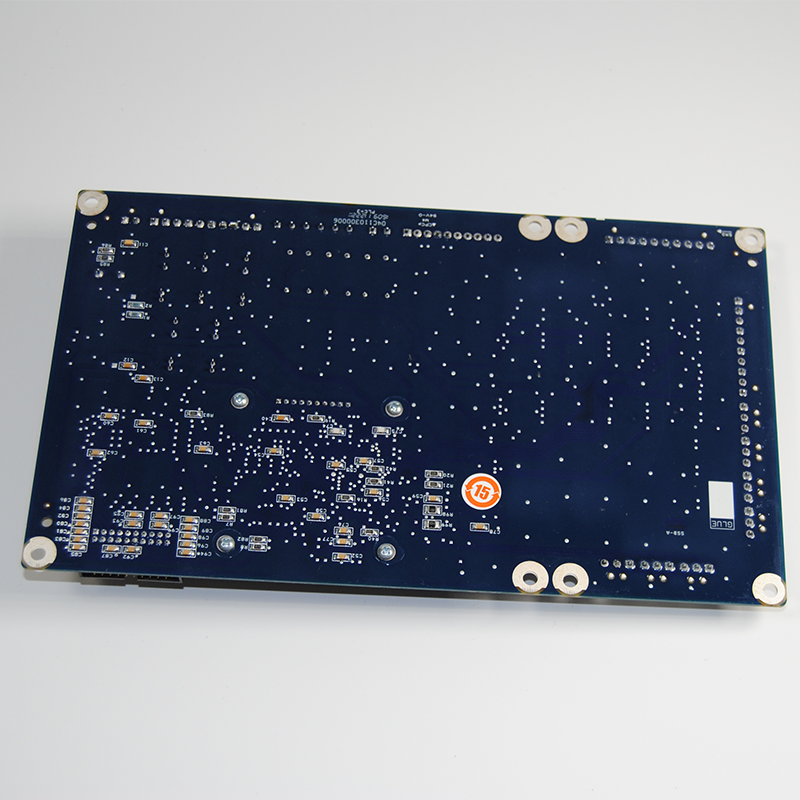

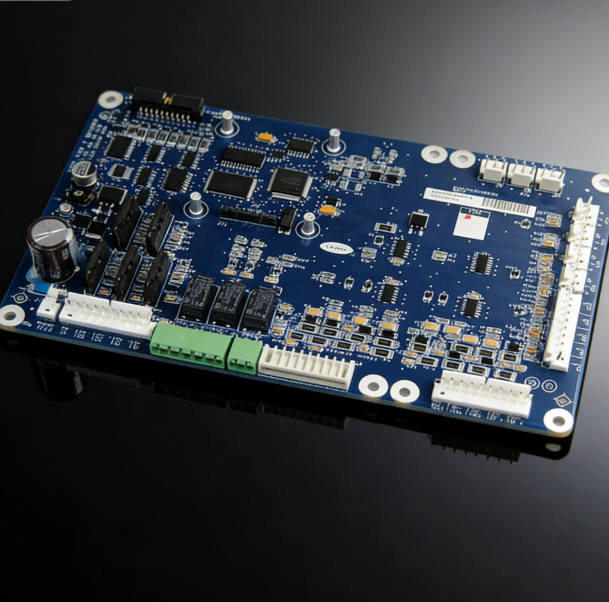

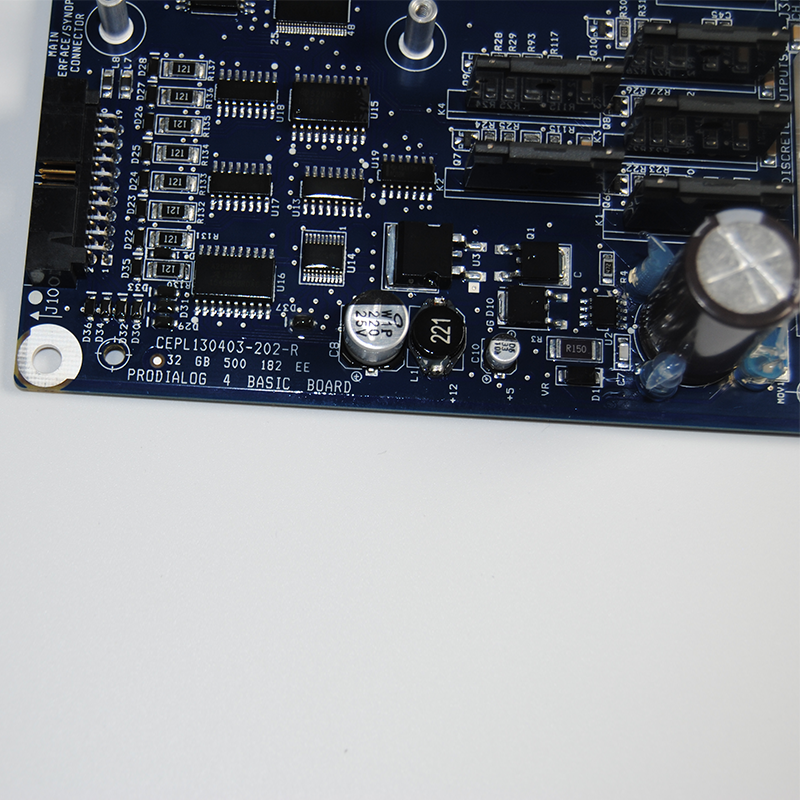

Carrier 32GB500182E Control Board: Functions and Applications
1. Basic Control and Logic Operations
Receives data—such as temperature, pressure, and flow rates—collected by sensors; based on pre-set programs, it controls compressor loading/unloading, fan speed, and valve opening levels to maintain stable unit operation.
2. Status Monitoring and Protection
Monitors the unit’s operational status in real-time and incorporates multiple built-in safety logic functions, including high/low-pressure protection, overload protection, anti-freeze protection, oil flow protection, and phase sequence protection. In the event of an anomaly, it triggers alarms, initiates load reduction, or performs an emergency shutdown to prevent equipment damage.
3. Communication and Data Exchange
As a core control module, it communicates with the main control board, I/O boards, and operator panels to facilitate data sharing, command execution, and status feedback, thereby supporting remote monitoring and fault diagnosis.
4. Parameter Configuration and Commissioning
Allows for the modification of operational parameters (such as temperature setpoints, pressure thresholds, and time delays) via the operator panel or a host computer, enabling the unit to adapt to the specific requirements of various operating conditions.
5. Fault Self-Diagnosis
Features built-in functions for storing and displaying fault codes, enabling rapid problem localization (e.g., sensor failures, communication anomalies, or actuator malfunctions) and significantly improving maintenance efficiency.
