Products Description

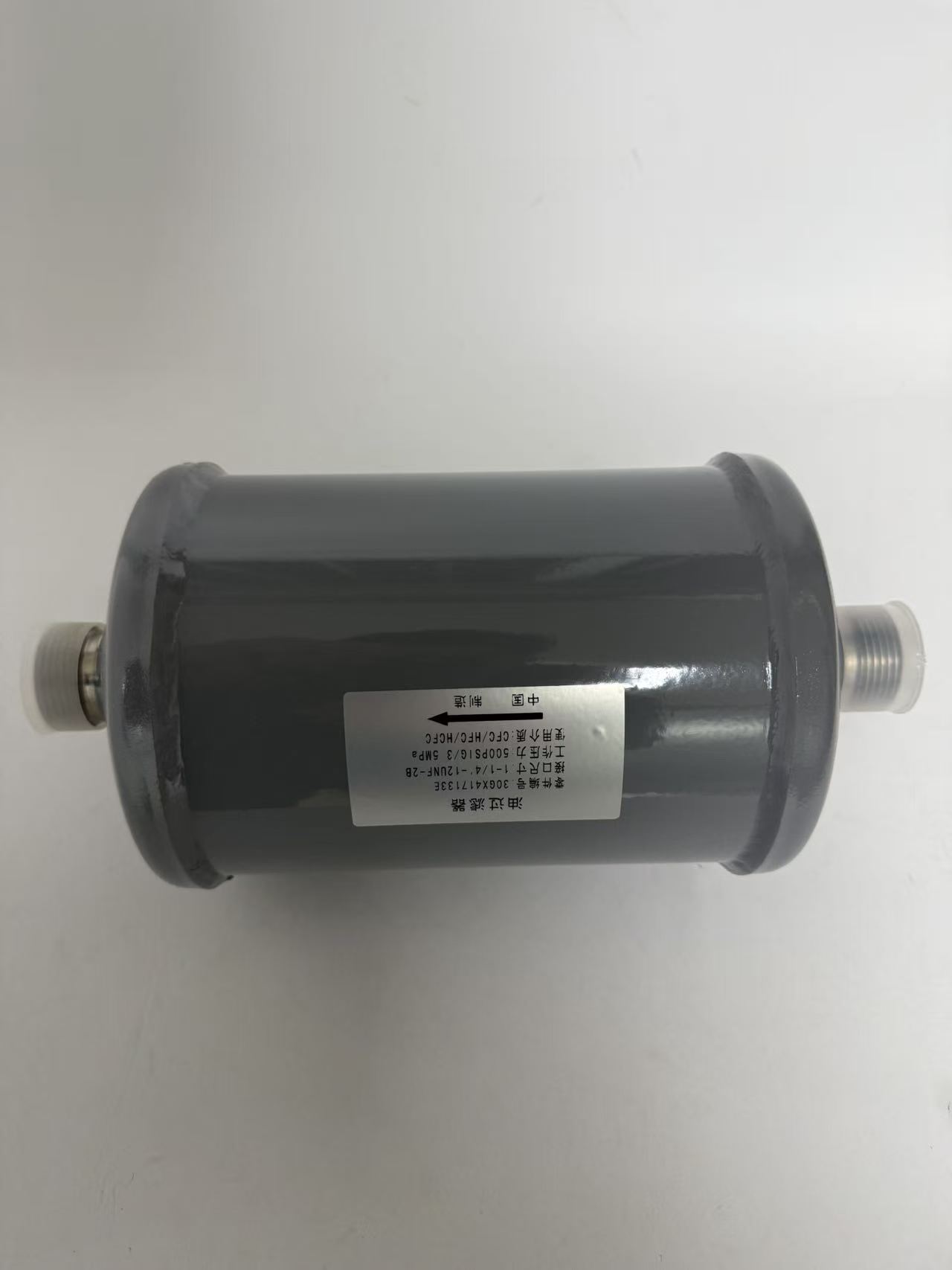

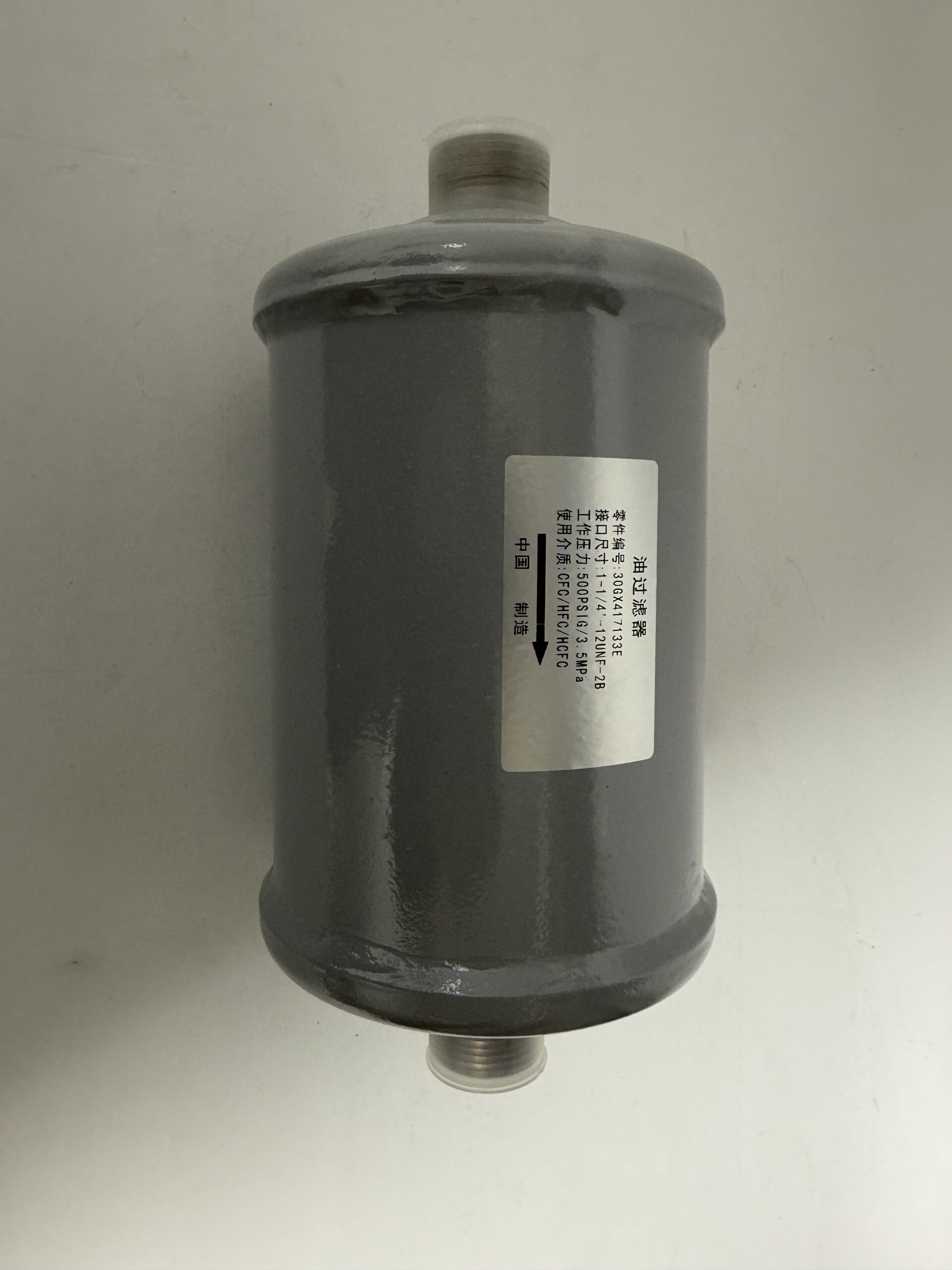

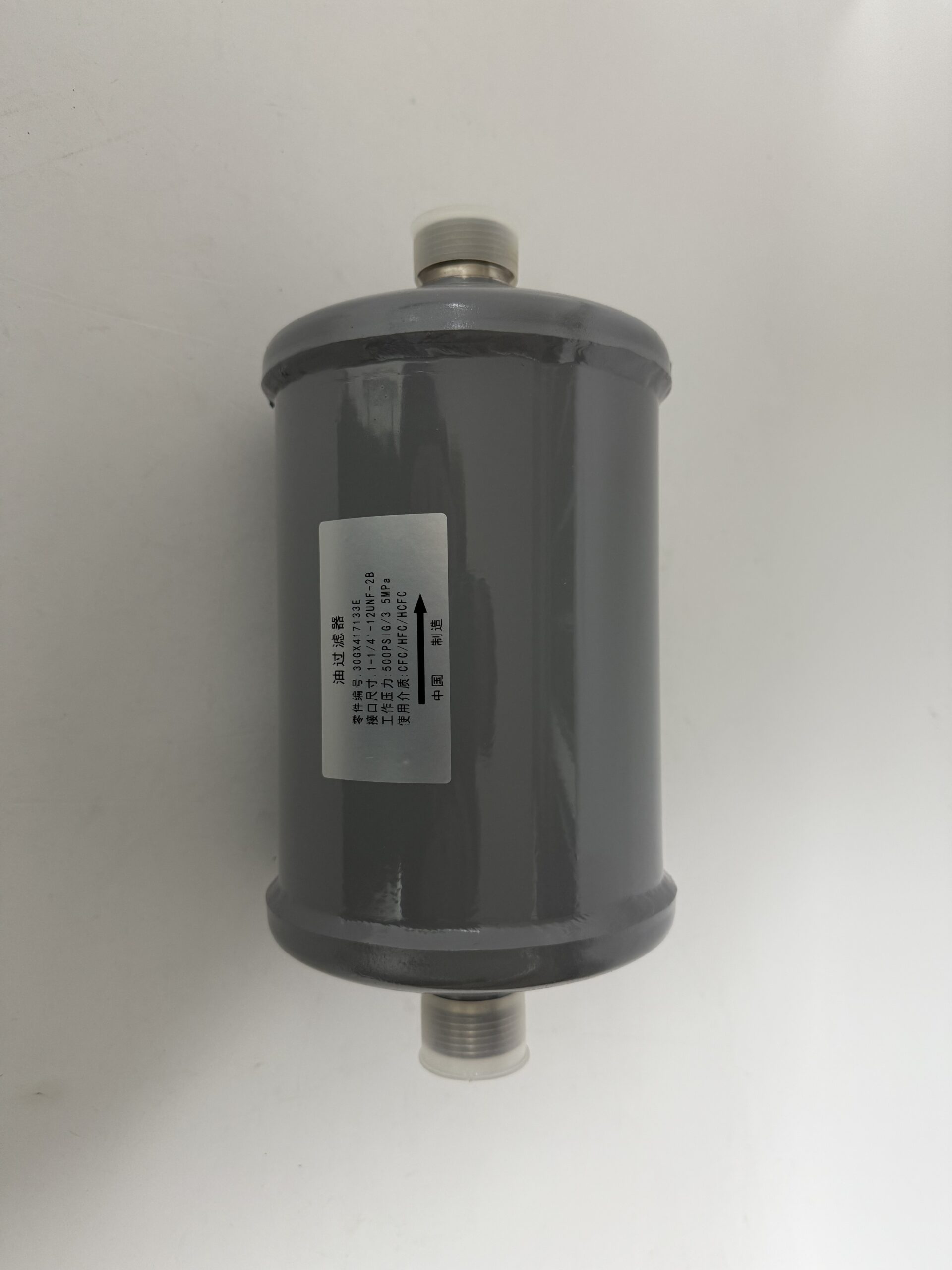

| Product Name | Carrier 30GX417133E Integrated External Oil Filter |
| Model | 30GX417133E |
| Applicable Industries | Construction and Commercial |
| Application | Refrigeration compressor |
| Packaging | Cardboard Box |
| MOQ | 1 Piece |
Core Filtration Features:
1. Core Filtration Performance of the Filter Element
Features a multi-layer pleated design using imported HV glass fiber media and a high-precision (10μm) composite glass fiber layer; the filtration surface area is optimized for low-to-medium flow oil circuits, efficiently capturing micron-sized metal debris, pipeline rust, and welding residue. It offers excellent temperature resistance, utilizing oil-resistant epoxy resin bonding that prevents cracking or fiber shedding—which could contaminate the oil—during thermal cycling.
2. Dual-Layer Galvanized Carbon Steel Support Mesh
The filter media is sandwiched between inner and outer galvanized steel mesh layers that are fully welded at both ends. This structure withstands instantaneous pressure surges during oil pump start-stop cycles, preventing media collapse or flow path obstruction, thereby ensuring stable, undiminished oil supply flow.
3. Fluid Flow Characteristics
The initial pressure drop of a new filter element is less than 0.22 bar. Even under full-load operation in small-to-medium screw compressor units, the pressure drop remains extremely low, avoiding issues such as low oil pressure or system shutdowns triggered by pressure differential alarms.
Tags: 30GX417133E Carrier chiller replacement parts Carrier filter Chiller Oil Filter Commercial chiller accessories Compressor Filter Compressor maintenance component Cooling System Components HVAC spare filter Industrial air conditioner filter Refrigerant maintenance filter refrigeration system filter
Technical parameter
Company Profile
Factory Profile
| Q1:For refrigeration industry, which brands are your products covering? | A1:We produce filter element replacements for brands like,Bitzer, Carrier, Yk, McQuay, Trane, etc… |
| Q2:Does the price include freight? | A2:The quotation is usually the factory price. We can recommend the most economical logistics plan and calculate the freight according to your destination and quantity. |
| Q3:How to ensure product quality? | A3:We have a strict quality control process, and we will carry out multiple inspections before the products leave the factory to ensure that they meet the standards. |
| Q4:Why choose us? | A4:Product reliability: We are a professional manufacturer . can offer high-quality products at the most competitive prices. Technical support: We provide technical assistance. Industry experience: We have over 10 years of experience in the refrigeration equipment service field. After-sales service: We offer professional after-sales service. Team collaboration: We have a professional team that can provide you with prompt services and delivery schedules. |
Product Internal Structure and Material Composition:
1. Seamless Epoxy-Coated Steel Cylinder (Main Housing)
A seamless steel tube formed via integral roll-forming; rated for 34.5 bar pressure to withstand the high-pressure oil circuit conditions of screw compressor units, with roll-sealed end caps.
2. Outer Galvanized Protective Steel Mesh
Acts as a primary coarse filter, blocking large welding slag and rust particles from directly impacting the fiberglass filter media, thereby extending the filter element’s service life.
3. Multi-layer Pleated Fiberglass Filter Element (Filtration Core)
Features an ultra-fine pleated fiberglass filtration layer that purifies refrigeration oil and removes all hard impurities, protecting screw rotors and sliding bearings from particle-induced scoring.
4. Inner Galvanized Support Cylinder
A central support framework that withstands negative pressure in the oil circuit, preventing the filter media from collapsing inward and blocking the oil flow, while stabilizing the oil pump’s supply flow rate.
5. Integrated Viton (Fluororubber) Gaskets at Both Ends
Prevents high-pressure oil leakage at the threaded connections and stops contaminated oil from bypassing the filter element.
