Products Description

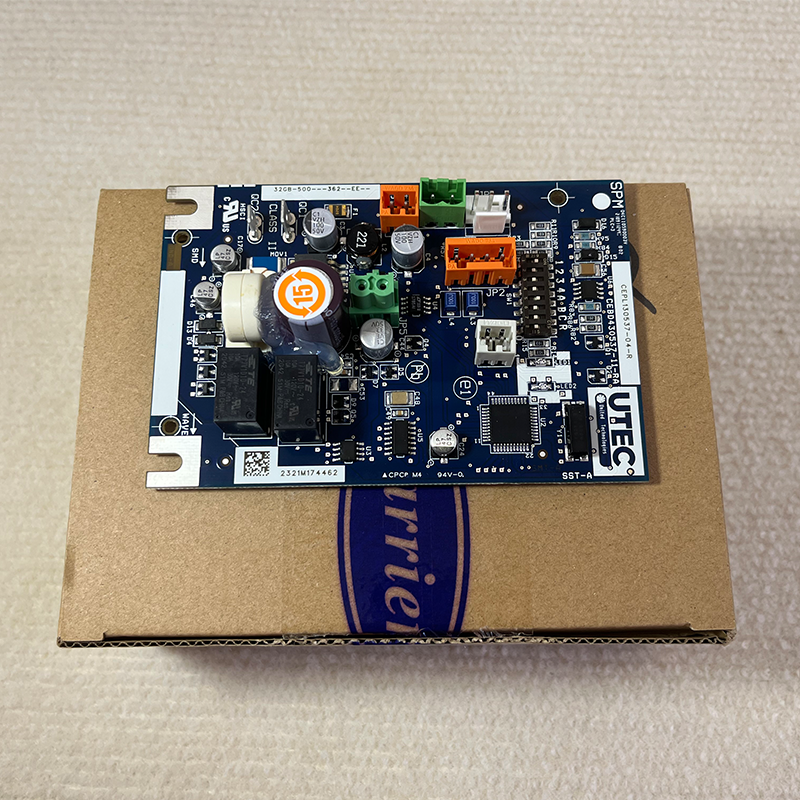

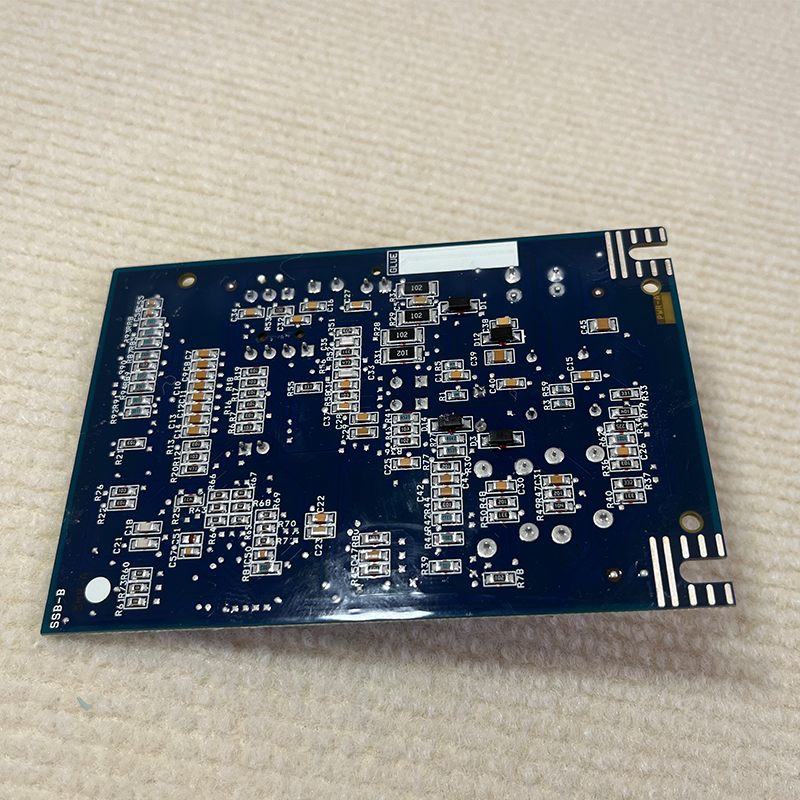

| Product Name | Carrier SPM Circuit Board 32GB500362 |
| Model | 32GB500362 |
| Applicable Industries | Construction and Commercial |
| Application | Refrigeration compressor |
| Packaging | Cardboard Box |
| MOQ | 1 Piece |
Carrier 32GB500362 SPM Compressor Protection Board — Core Functions:
1. Real-time Monitoring of Comprehensive Compressor Parameters (Core)
Precisely acquires key parameters such as three-phase current, voltage, winding temperature, discharge temperature, suction pressure, discharge pressure, oil level, and oil temperature. It monitors the compressor’s operating status in real-time, providing essential data support for the protection logic.
2. Multiple Safety Protection Mechanisms (Core)
Integrates protection functions against overcurrent, overload, phase loss/reverse phase, high/low voltage, excessive discharge temperature, excessive winding temperature, low oil level, high oil temperature, and liquid slugging. In the event of an anomaly, it immediately shuts down the compressor, logs the specific fault code, and triggers an LED alarm—thereby preventing severe damage such as motor burnout, piston seizure, or liquid slugging at the source.
3. Compressor Start/Stop and Load Control
Receives commands from the main control board to precisely manage compressor start/stop operations as well as loading/unloading cycles, specifically adapted for scroll compressors. Features soft-start control to minimize inrush current during startup, thereby extending the compressor’s service life. Dynamically matches the unit’s operational load to optimize energy efficiency.
4. Communication Interaction and Data Transmission
Establishes bi-directional communication with the unit’s main control board and touchscreen interface via RS485 or CCN bus. It uploads real-time operating parameters, fault codes, and equipment status data, while simultaneously receiving commands from the main control board to facilitate collaborative control, remote monitoring, and system commissioning.
5. Fault Diagnosis and Memory Storage
Features built-in self-diagnostic capabilities, historical fault logging, and LED status indication functions. Supports both local and remote fault querying, facilitating rapid problem localization and troubleshooting to effectively reduce maintenance costs.
Tags: air conditioning circuit board Carrier 32GB500362 Carrier Chiller Parts Carrier Control Board carrier HVAC accessories chiller control board chiller electrical board chiller maintenance parts chiller replacement board Chiller SPM Board commercial HVAC parts cooling system control board electronic control board hvac circuit board HVAC Spare Parts industrial hvac module main control board refrigeration circuit board refrigeration equipment board SPM Circuit Board
Technical parameter
Company Profile
Technical parameter
| Q1:For refrigeration industry, which brands are your products covering? | A1:We produce filter element replacements for brands like,Bitzer, Carrier, York, McQuay, Trane, etc… |
| Q2:Does the price include freight? | A2:The quotation is usually the factory price. We can recommend the most economical logistics plan and calculate the freight according to your destination and quantity. |
| Q3:How to ensure product quality? | A3:We have a strict quality control process, and we will carry out multiple inspections before the products leave the factory to ensure that they meet the standards. |
| Q4:Why choose us? | A4:Product reliability: We are a professional manufacturer . can offer high-quality products at the most competitive prices. Technical support: We provide technical assistance. Industry experience: We have over 10 years of experience in the refrigeration equipment service field. After-sales service: We offer professional after-sales service. Team collaboration: We have a professional team that can provide you with prompt services and delivery schedules. |
Common Product Faults and Replacement Indicators
1. Compressor Fails to Start / Frequent Start-Stop Cycles: SPM board power supply failure, damaged sampling circuit, false triggering of the protection circuit, or communication interruption;
2. Compressor Reports Overcurrent / Overload / Phase Loss Protection: Abnormal current sampling, phase detection fault, or disordered protection logic;
3. Frequent Triggering of Discharge Overheat / Winding Overheat Protection: Temperature sampling fault, drift in protection thresholds, or poor heat dissipation;
4. Low Oil Level / High Oil Temperature Protection: Abnormal signal from the oil level/temperature sensor, or fault in the SPM board’s processing circuitry;
5. Communication Error (SPM Disconnection): Damaged RS485 communication chip, interface failure, or software program corruption.
