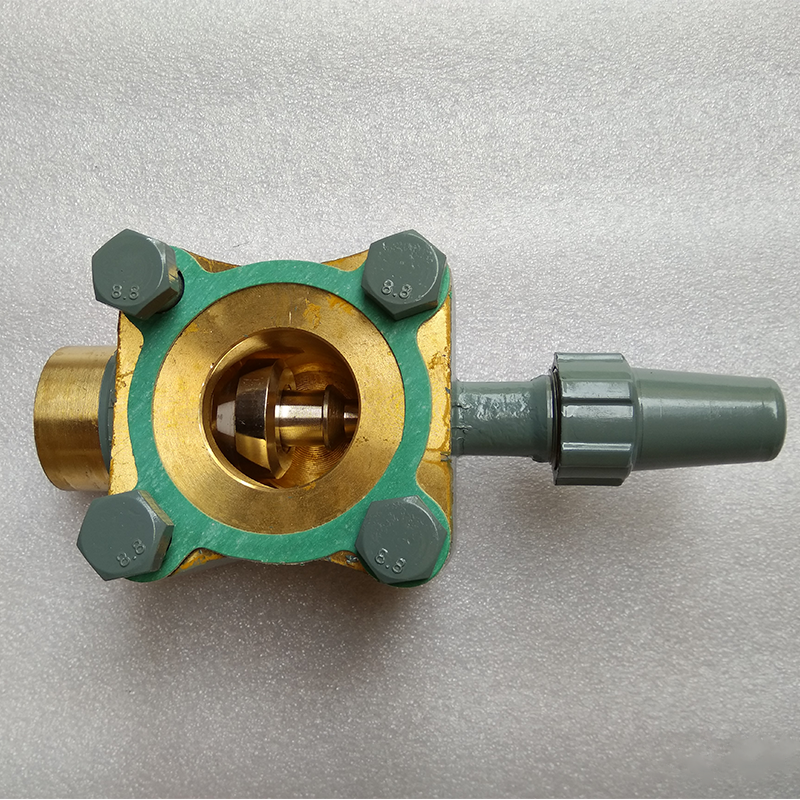

Products Description
| Product Name | Carrier HVAC Discharge Shut-off Valve / Suction Valve 06EA660090G |
| Model | 06EA660090G |
| Applicable Industries | Industry and Manufacturing; Transportation |
| Application | Refrigeration compressor |

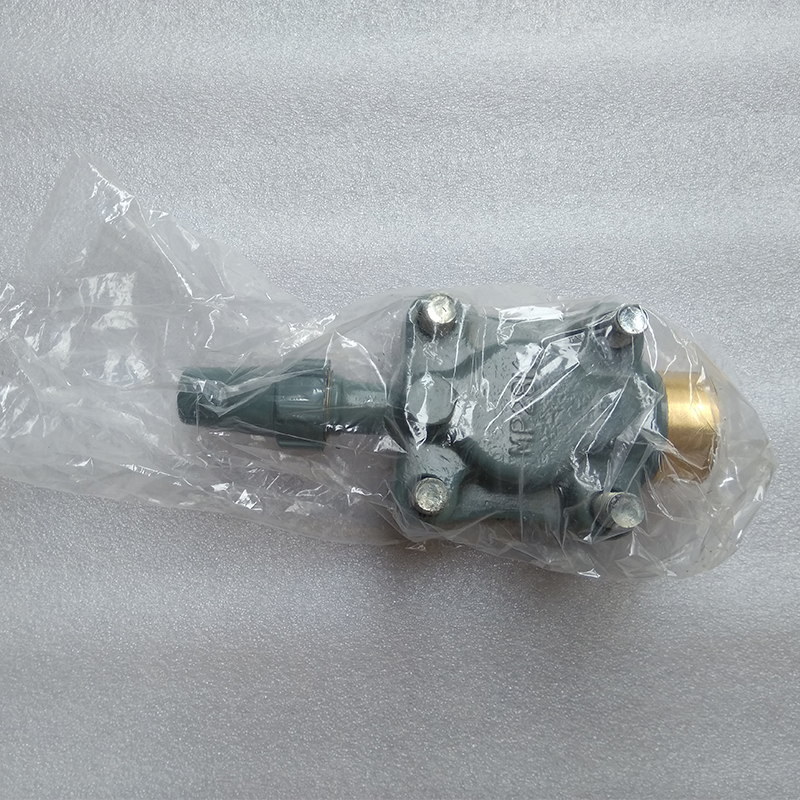

| Packaging | Cardboard Box |
| MOQ | 1 Piece |
Carrier 06EA660090G Discharge Shut-off Valve: Functions and Applications
Core Function: Control of High-Pressure Discharge Flow + System Service Interface
1. High-Pressure Discharge Control
Installed within the discharge chamber of Carrier 06E series semi-hermetic piston compressors, this valve allows for the manual shut-off of high-pressure discharge flow. It serves to isolate the compressor from the rest of the system during independent maintenance, oil changes, or component replacements, thereby preventing refrigerant leakage and system depressurization.
2. System Inspection and Maintenance
Equipped with a service port (Schrader valve), it allows for the direct connection of a pressure gauge to monitor high-side discharge pressure, perform system evacuation, charge refrigerant, or purge impurities. It serves as an essential interface for routine unit maintenance and servicing.
3. High-Pressure Sealing and Safety
Featuring a dual-seal design—combining a hard metal seal with a high-pressure fluorocarbon rubber seal—the valve ensures zero internal leakage and exceptional resistance to high-pressure surges. During system shutdowns or maintenance procedures, it reliably locks off the high-pressure side, effectively preventing high-side gas migration, oil backflow, and the risk of liquid slugging.
Tags: chiller discharge valve chiller flow control valve chiller maintenance part chiller service valve chiller spare part compressor discharge valve compressor service valve compressor valve assembly discharge valve fluid control valve hvac discharge valve hvac replacement part hvac service component hvac system component Industrial Chiller Part industrial refrigeration valve refrigerant valve refrigeration discharge valve refrigeration equipment valve refrigeration system valve
Technical parameter
Company Profile
Technical parameter
| Q1:For refrigeration industry, which brands are your products covering? | A1:We produce filter element replacements for brands like,Bitzer, Carrier, York, McQuay, Trane, etc… |
| Q2:Does the price include freight? | A2:The quotation is usually the factory price. We can recommend the most economical logistics plan and calculate the freight according to your destination and quantity. |
| Q3:How to ensure product quality? | A3:We have a strict quality control process, and we will carry out multiple inspections before the products leave the factory to ensure that they meet the standards. |
| Q4:Why choose us? | A4:Product reliability: We are a professional manufacturer . can offer high-quality products at the most competitive prices. Technical support: We provide technical assistance. Industry experience: We have over 10 years of experience in the refrigeration equipment service field. After-sales service: We offer professional after-sales service. Team collaboration: We have a professional team that can provide you with prompt services and delivery schedules. |
Product Installation and Maintenance Guidelines:
Installation Location: Compressor high-pressure discharge chamber flange face
Installation Orientation: The arrow on the valve body must point toward the discharge line; reverse installation is strictly prohibited.
Installation Procedure:
Clean the flange face and install a brand-new fluororubber gasket.
Tighten the 4 bolts evenly in a diagonal pattern.
The valve stem should remain in the fully open position during operation; close it only when performing maintenance.
Maintenance and Replacement:
1. Common Faults: Internal leakage (high-pressure bypassing into low-pressure), valve spool seizing, seal leakage.
2. In the event of internal leakage or seal leakage, replace the entire assembly; repairing the valve spool individually is not recommended.
3. It is recommended to inspect and/or replace this valve in conjunction with the suction valve.
